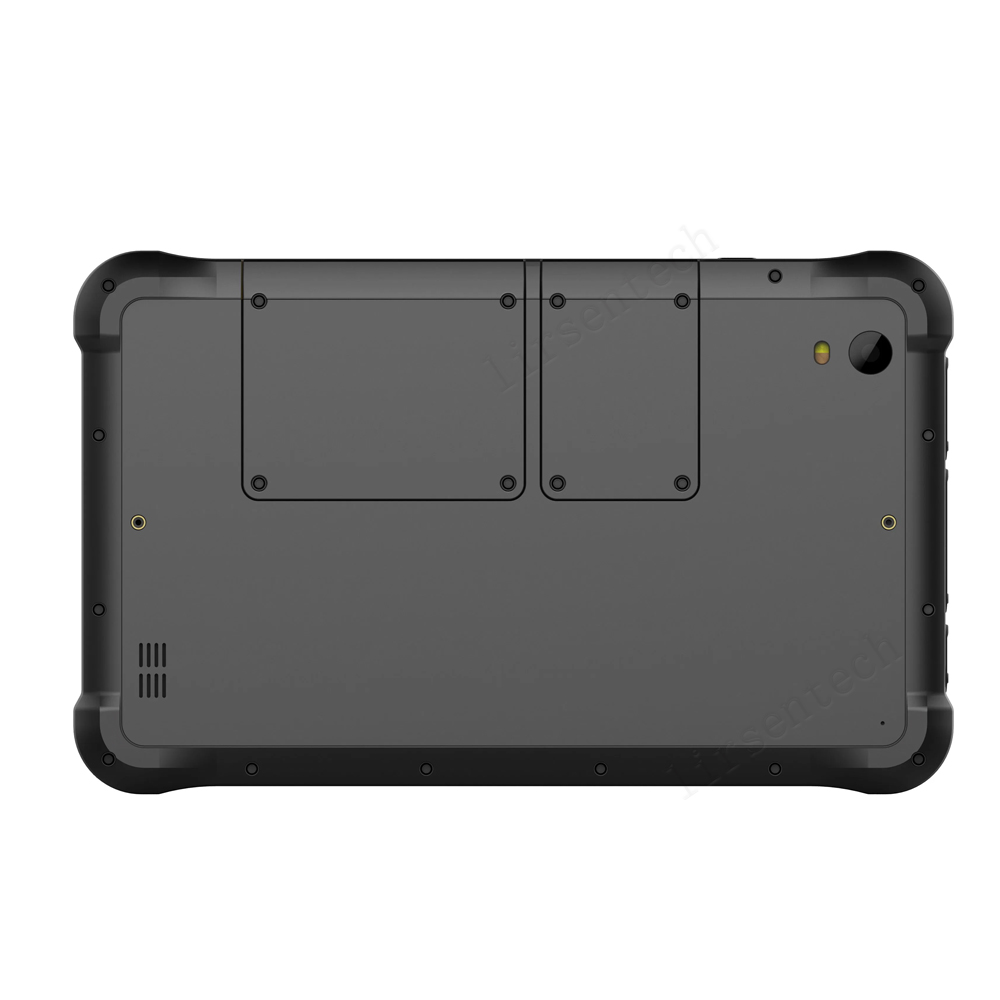

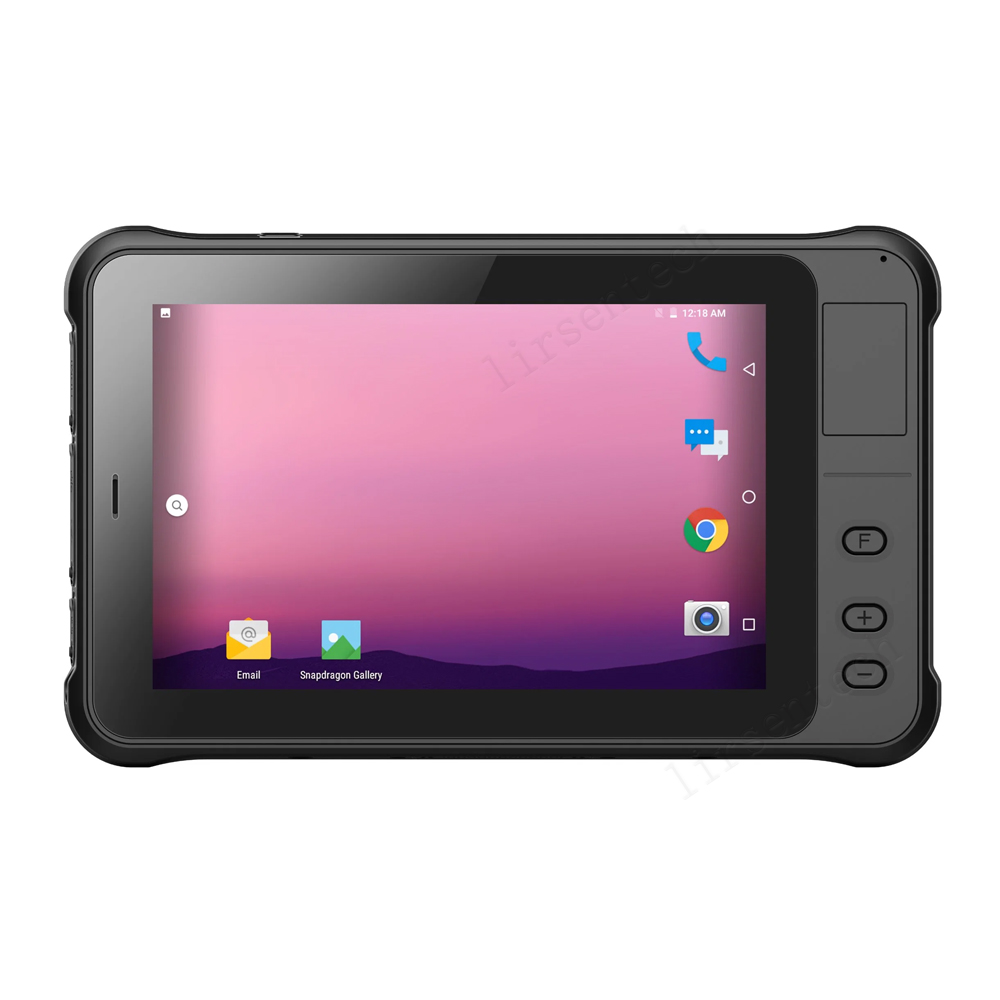

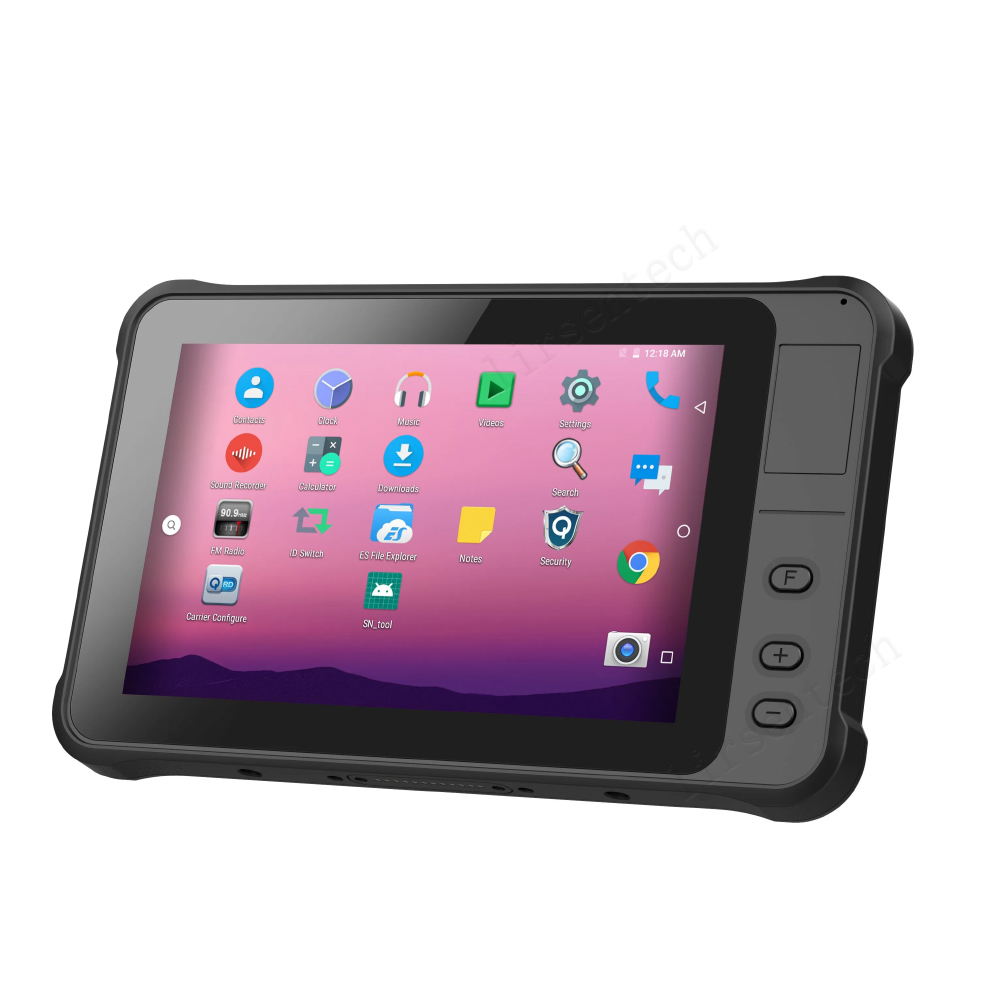

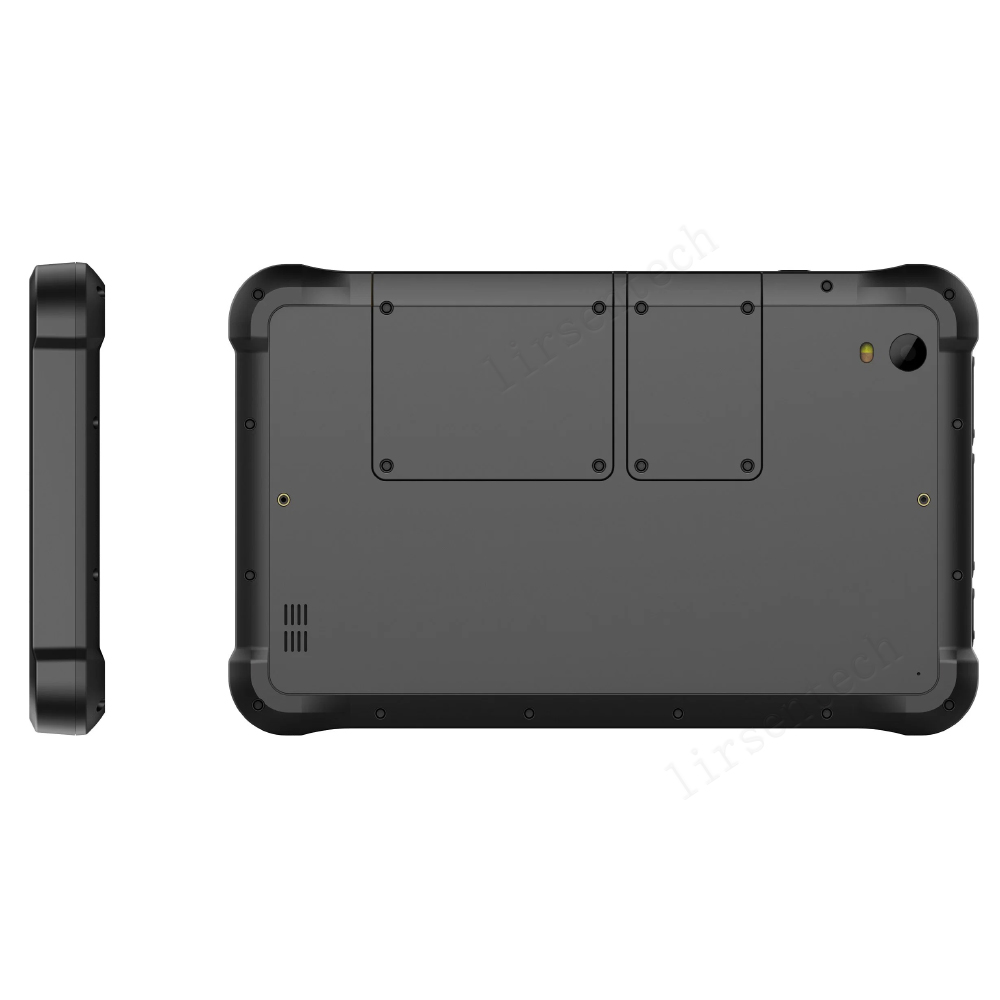

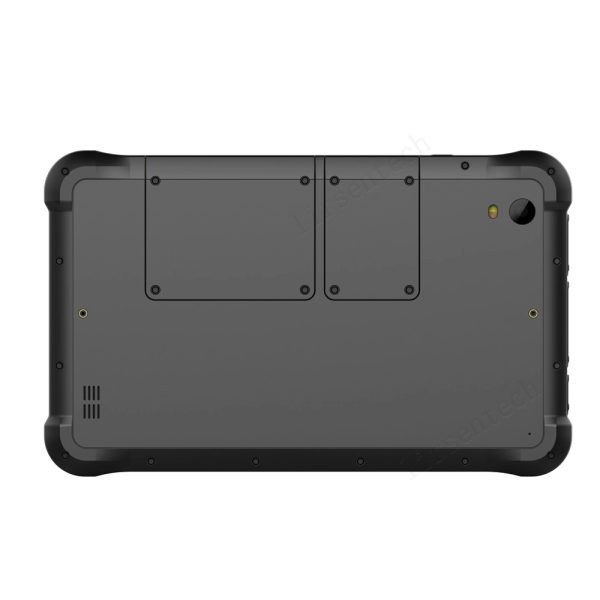

Product Description
Functions
• Support for Android 10 system
• Integrated 4G all network communication, WiFi, Bluetooth and other communication modes
• 7500mAh battery, 6-8 hours of machine endurance
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, GLONASS, more accurate positioning
• 800×1280 IPS, 1000nit high brightness screen, more suitable for outdoor harsh environment
• Support 1D/2D, UHF, NFC, ID card and other functional modules for free selection
Technical parameters:
| Standard Specification | |
| Model | ES-Q75 |
| CPU | MSM8953 |
| OS | Android 10 GMS |
| LCD | 7″, 16:10, 800*1280 IPS screen |
| Touch Panel | 5-point multi-point capacitive screen, G+G, hardness above 7H, scratch-resistant, COF, support wet hand touch, glove touch |
| RAM | 4G DDR3 |
| Flash | 64GB |
| Wi-Fi | 802.11(ac/a/b/g/n) frequency 2.4G+5.8G dual frequency |
| Camera | Front 5.0MP+Back 13.0 MP |
| Bluetooth | Bluetooth BT4.1 + BLE, Transmission distance: 10m |
| Battery | 3.7V/7500mAh |
| Speaker | Built-in 8Ω/0.8W waterproof speaker x 1 |
| Sensor | G-sensor |
| 4G | CMCC 4M: LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 WCDMA 1/2/5/8 GSM 2/3/5/8 |
| GPS | Support: GPS, GLONASS, Beidou three modes (choose two from three) |
| TF card slot | *1 |
| USB interface | Micr USB 2.0*1 |
| Headphone | ∮3.5mm standard headphone port |
| Optional functions | |
| UHF RFID | M-550 UHF RFID ultra-thin integrated module: |
| ID card module | Support second and third generation identity reading and fingerprint information reading in ID card, interface: USB or TTL serial port optional, power supply 5v or 3.3v, size: 53mm*52mm*10mm |
| Public security authentication fingerprint module | Resident ID card fingerprint acquisition module: standard UART/ USB interface, baud rate 115200bps (default), sensor type: semiconductor capacitive, image size 256 * 360 pixel, working voltage 3.8~5V, working current 50mA, standby current 35mA, size: 35mm*23mm*3.4mm |
| 1D barcode | Honeywell N4313 |
| 2D barcode | N3680 /SE4710 (Soft decoding) |
| Optional accessories | |
| Car holder ES-VHM75 | Material:Aluminum alloy; Aluminum alloy Tube Size: 142*69*35mm, Aluminum alloy Tube weight: 244g |
| US standard Adaptor | AC100V~240V,50Hz/60Hz output DC 5V/3A; USA standard: CE approved; Plug:7cm(W)*4.2cm(L)*5.4(H), length of cable: 1.2m; weight: 141g |
| Europe standard Adaptor | AC100V~240V,50Hz/60Hz output DC 5V/3A; USA standard: CE approved; Plug:7cm(W)*4.2cm(L)*6.8(H), length of cable: 1.2m; weight: 146g |
| Three-in-one Adaptor | AC100V ~ 240V,50Hz/60Hz output DC 5V/3A; USA standard: CE approved; Plug:6.4cm(W)*5cm(L)*2.6(H), length of cable: 1.6m; weight: 170g |
| Docking | Expansion base, support Ethernet, 3*USB Extend docking, support Ethernet; Weight: 292g |

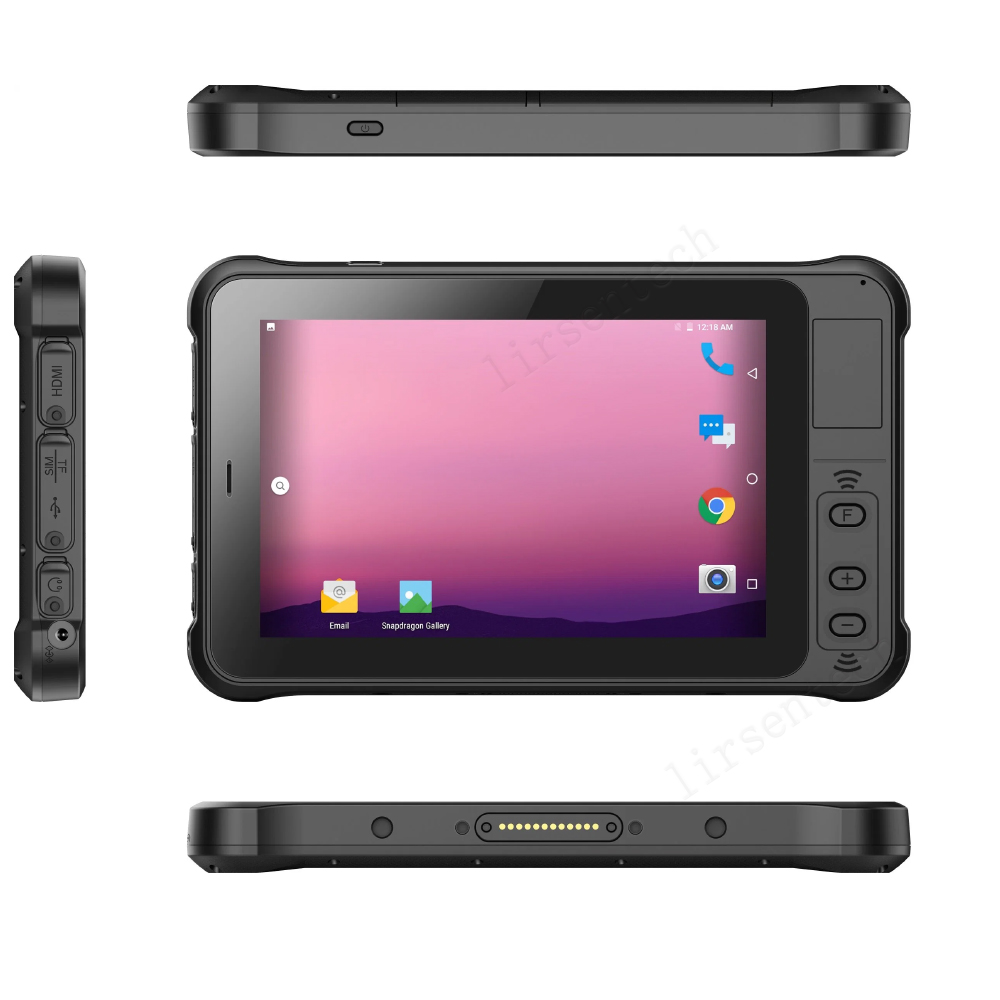

Product size:
FAQ:
Q: Whether your rugged tablet pc support the OEM / ODM?
A: Yes, not only the standard products but also we provide flexible OEM/ODM.
Q: Where is your panel pc / Tablet pc apply?
A: Outdoor Exploration, Military Equipment, Finance, Animal Husbandry, etc .
Q: What is the main size for your rugged tablet pc?
A: 7″,8″, 10.1″, Windows and Android OS both supported.
Q: Can customzied our boot logo? What is MOQ?
A: Yes supported. MOQ is 50pcs.
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all tablet pc are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee.
