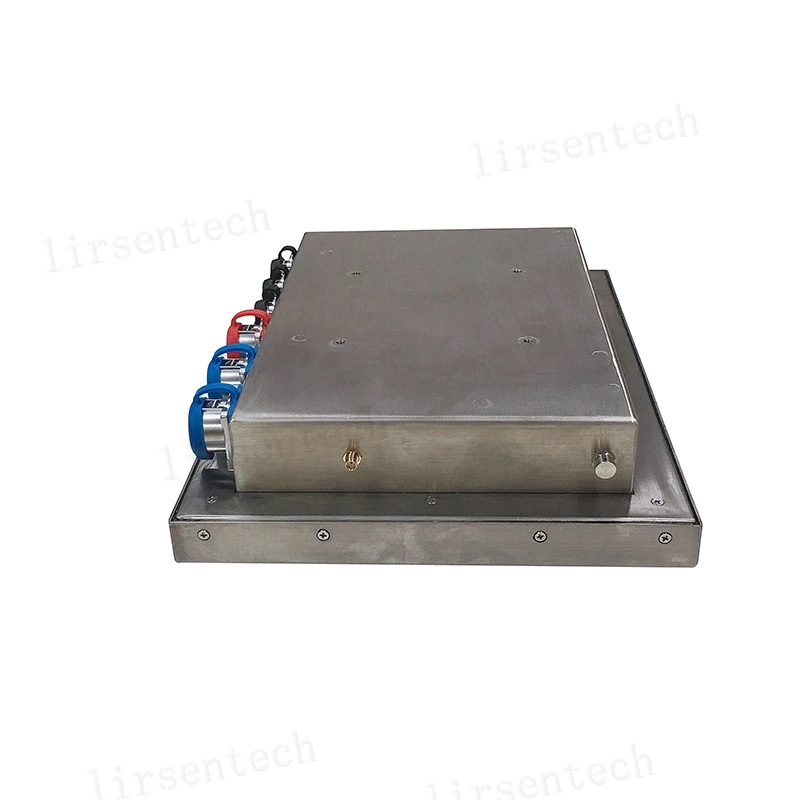

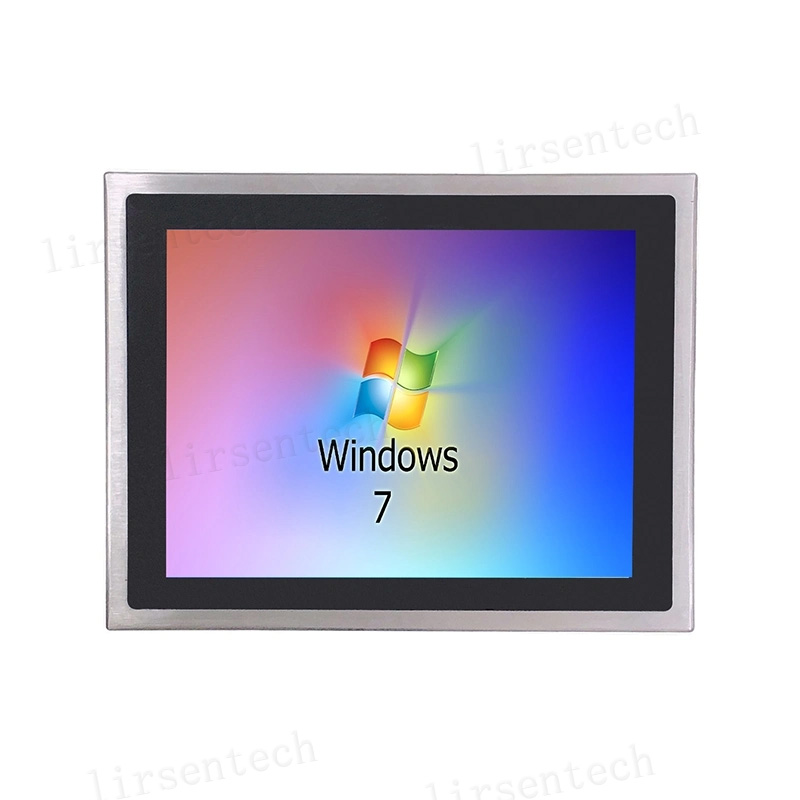

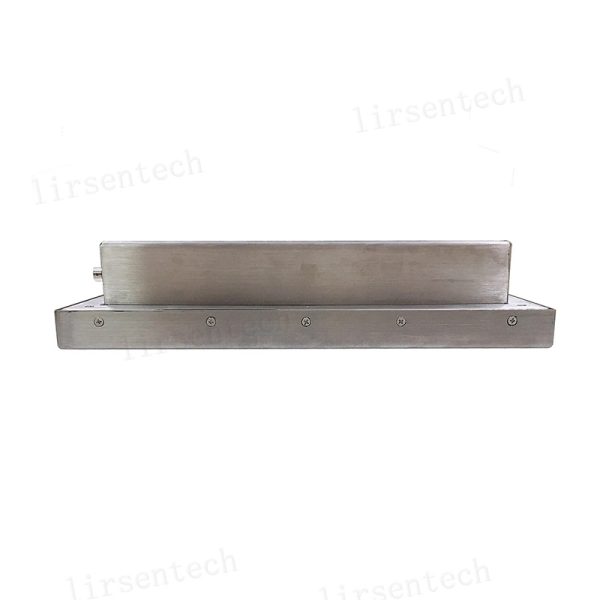

Customization 21.5 Inch Capacitive Touchscreen Android All-in-One PC Stainless Steel Industrial Panel PC with IP67 Dustproof Waterproof
Product Description
21.5 Inch Capacitive Touchscreen Android All-in-One PC Stainless Steel Industrial Panel PC with IP67 Dustproof Waterproof
Introduction:
*Adopt Rockchip RK3288 quad-core chip ARM solution, hardware decoding H.265 HD video, support 4K ultra HD output;
*Onboard DDR3 2GB memory, 8GB storage motherboard;
*Design features: the whole machine SUS304 stainless steel/IP67 dustproof and waterproof/corrosion and wear resistance/sturdy and durable;
*The whole machine adopts NEMA4/IP65 waterproof and dustproof grade combined with a fanless energy-saving and silent design. The case is made of SUS304 stainless steel, which makes the case more resistant to corrosion, abrasion, impact and vibration;
*21.5-inch 16:9 display ratio, 1920*1080 HD resolution, A+ perfect industrial LCD display;
*Adopting Taiwan’s EETI solution resistive touch screen, with good stability, high accuracy, and not afraid of dust, water vapor, oil, etc., suitable for use in various harsh environments (multi-point capacitive touch screen is optional);
*DC 12V power input (DC 24V or 9-36V wide voltage input is optional);

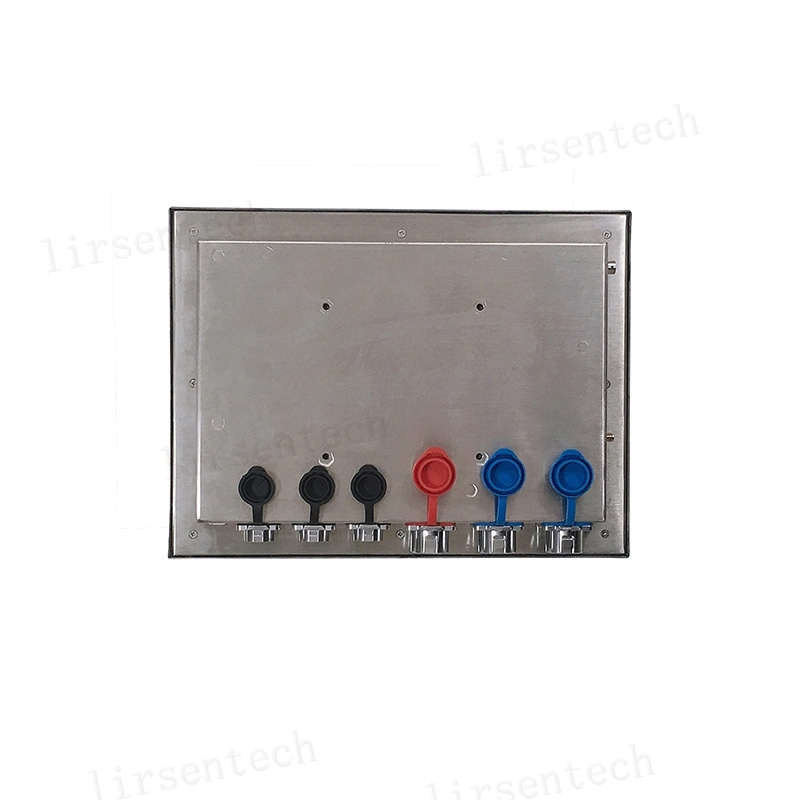

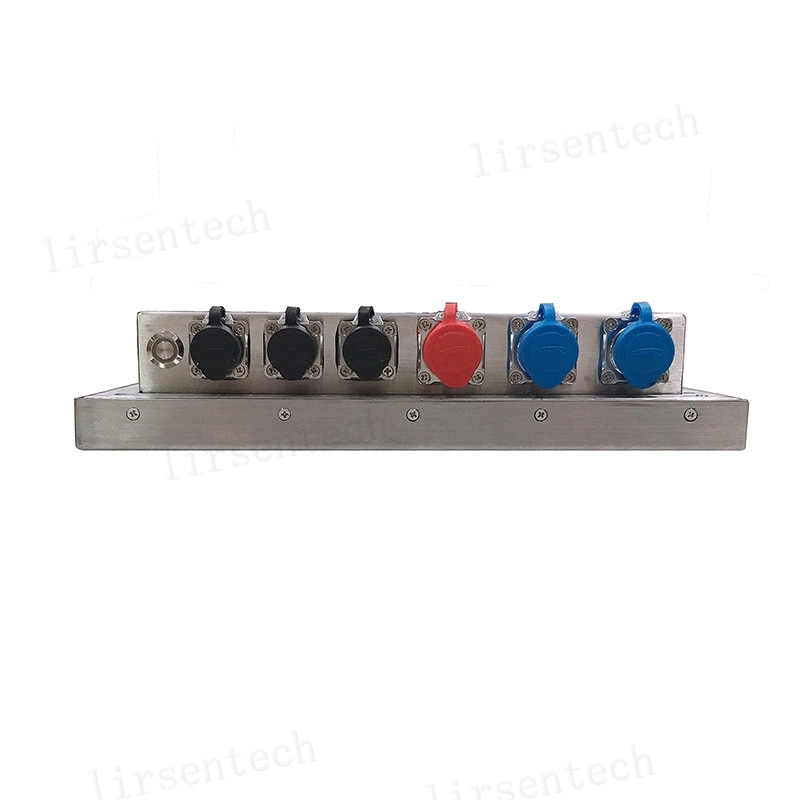

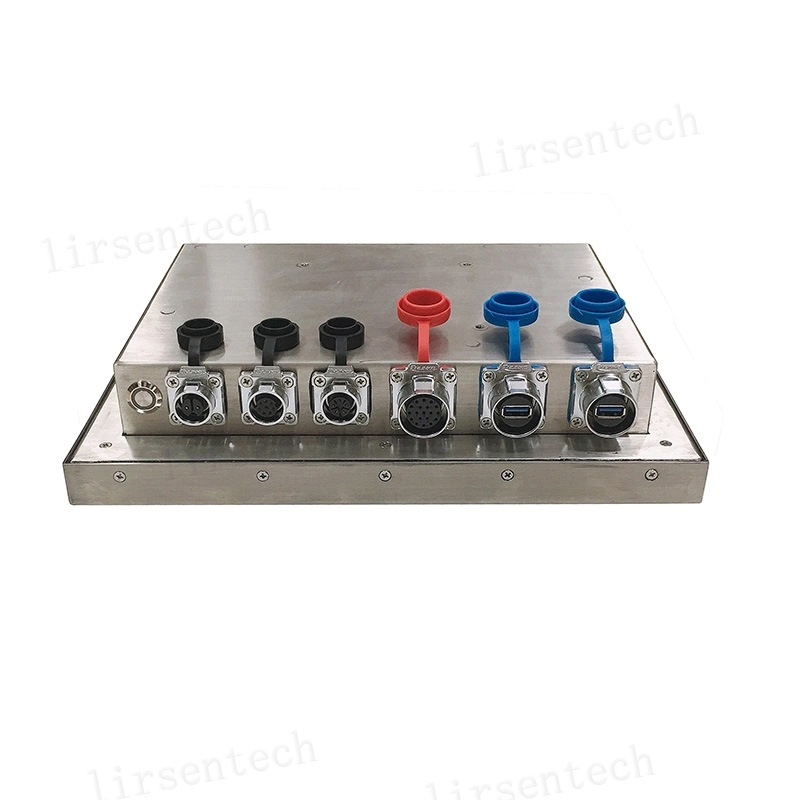

*Rich IO interfaces, free to connect to external devices, 1*USB, 1*RS232, 1*HDMI, 1*RJ45, 1*DC IN;
*Operating System: Support Android 5.1/8.1.
Technical specification:
| Host parameter | CPU | Rockchip RK3288 1.8GHz quad-core (RK3399 2.0GHz six-core optional) |
| Graphics card | Mail-764 GPU graphics display core | |
| RAM | Onboard DDR3 2GB (4G optional) | |
| storage | 8GB onboard (maximum support 64GB) | |
| The internet | 1*RJ45 10M/100M adaptive; 1*WIFI/Bluetooth | |
| operating system | Android5.1/8.1 version | |
| Structural parameters | Special performance | High temperature corrosion resistance, strong anti-interference, stable and durable |
| Structure material | Whole machine metal shell, aluminum flat wire drawing panel + cold-rolled aluminum box | |
| Case color | SUS304 material itself (black can be sprayed) | |
| Installation method | Support VESA bracket installation (such as wall-mounted, desktop, standing) | |
| Display parameters | Size | 21.5 inch 16:9 display ratio |
| Resolution | 1920*1080 | |
| Brightness | 400cd/m2 (optional 1000cd/m2 visible brightness under sunlight) | |
| Other parameters | Contrast ratio: 3000:1 (Typ.); Viewing angle: 89/89/89/89 (Typ.) (CR≥10) (left and right up and down) | |
| Touch parameter | Touch type | EETI solution + resistive touch screen (capacitive touch screen optional) |
| Specifications | Click life >= 5 million times; touch force <= 45g~250g | |
| Material quality | Material: ITO glass; surface hardness >=3H; | |
| Interface parameters | I/O interface | 1*USB, *RS232, 1*HDMI, 1*RJ45, 1*DC IN |
| Optional interface | WIFI/GPIO/RS485 (optional) | |
| Environmental parameters | Operating temperature | 0ºC~50ºC |
| storage temperature | -20ºC~60ºC | |
| Relative humidity | 10~90%, no condensation | |
| Dimensions | physical dimension | 532.6*329.2*66mm |
| Installation size | 200*100mm/100*100mm (VESA bracket installation) | |
| Power support | DC power supply | DC 12V power input |
| Shipping accessories | Standard | 12V 5A adapter + AC power cord + corresponding interface aviation plug wiring + wall bracket |
| Warranty | 12 months (longer warranty time optional) warranty | |
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller’s permit.
FAQ:
Q: whether your industrial panel pc support the OEM / ODM?
A: Â Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: 7″,8″, 10.1″, 10.4″,12″, 13.3″ 15″, 15.6″, 17″ 19″ 21.5″ 22″ 24″ 32″ and wide screen the same zise. We also support the customized.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee !
| RAM | Android,I3(4+64GB),I5(4+64GB),I7(4+64GB) |
|---|---|
| OS | Andoid, Windows |
| Size | 10.1 Inch, 12 Inch |
