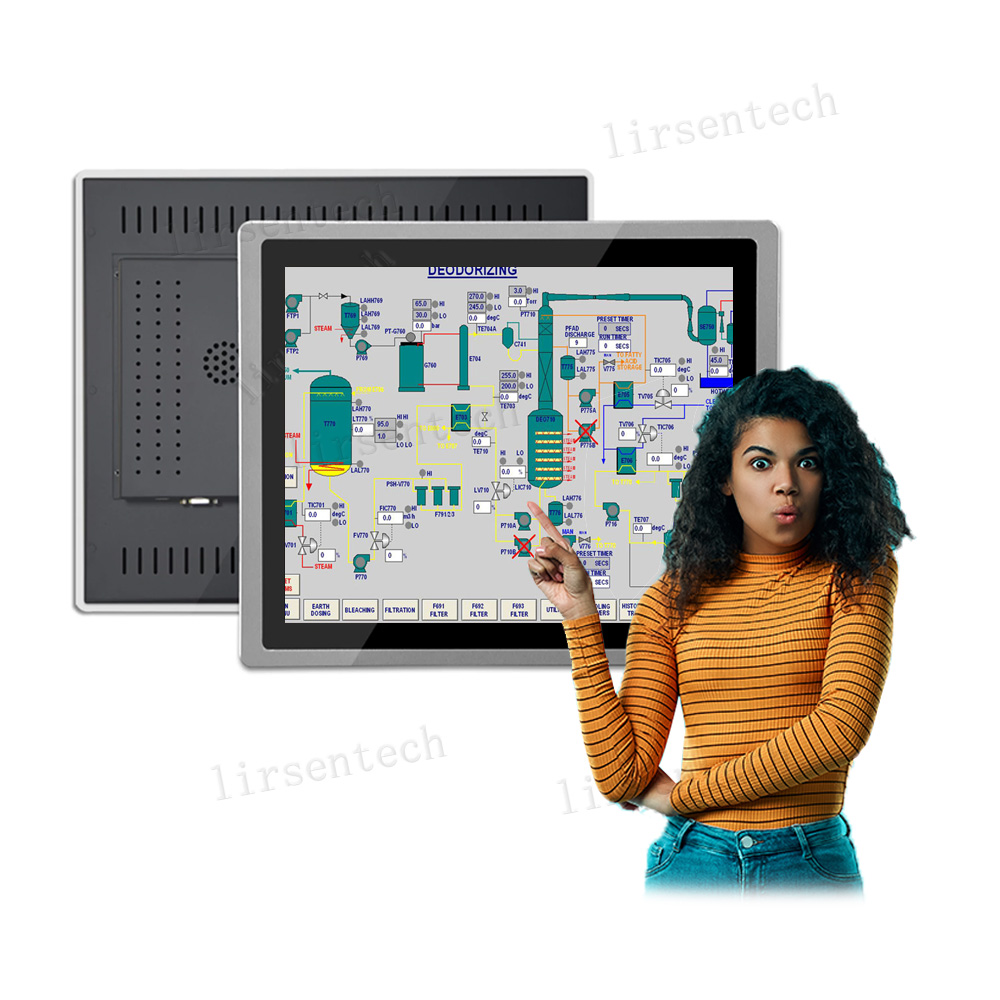

15”Android N2930/4GB LED Industrele POE Monitor Aluminium Volledige Verzegelde IP68 Waterdichte Computer Industrial Panel PC

 15”Android N2930/4GB LED Industrele POE Monitor Aluminium Volledige Verzegelde IP68 Waterdichte Computer Industrial Panel PC

Lirsen industrial touch screen panel PC can be used as an industrial controller to operate reliably in the industrial environment. Industrial touch panel pc has important computer attributes and features, such as computer motherboard, CPU, hard disk, memory, Blue-tooth, WiFi, peripherals and rich interfaces, and operating system, control network and protocol, computing power, and good man-machine interface. The products and technologies of the industrial control industry are very special and belong to intermediate products. They are regarded as providing stable, reliable, embedded and intelligent industrial computers in other industries. At present, industrial panel pc has been widely used in communications, industrial control sites, highways and streets toll collection, medical treatment, environmental protection and all aspects of people’s lives. The industrial panel pc is suitable for working in harsh environments with a lot of dust, large temperature changes, and many electromagnetic radiations, and has also been favored by the majority of users.

7 special features that distinguish our panel PCs

Strength: possibility of continuous use. In fact, these are devices that can work on several production shifts (H24).

Resistance: to any type of industrial environmental condition that includes dust, temperatures (low or high) and processing residues.

Fanless technology: heat is dissipated into the environment through the mechanical structure, thus maintaining the correct temperature of the internal components.

Capacitive touchscreen: a latest generation touchscreen technology allows above all a better graphic rendering as well as the possibility of using software for the management of 3D images.

Power and performance: thanks to an extremely wide range of configurations we can satisfy any type of requirement.

Hardware customization: thanks to the internal production and design departments we can work alongside the customer’s needs to create unique solutions.

 Ease of cleaning: externally the panel PC is made of tempered glass and steel and is therefore perfectly hygienic. The steel part is also equipped with an anti-dust and anti-fingerprint treatment.

 Windows10 and Linux panel PCs: as Microsoft’s official partners, we are able to support all operations to install Windows operating system and ensure its integration with control software.

industrial computer parameters

Brand:Lirsen
Memory: optional 2Gb/4Gb/8Gb DDR3 System Memory
Storage : optional 32Gb/64Gb/128Gb /256Gb /512GbSDD
System: WIN10 pro
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 4-7Kgs

System Parameter:

1.Celeron Processor J1800(Dual core, 1MB cache up to 2.41 ≤ 2.58 GHz,TDP power consumption:10w)

2.Celeron Processor J1900(4 cores, 2m cache, up to 2.00 ≤ 2.41 GHz,TDP power consumption:10w)

3.Intel Core i3-3217U(Dual core, 3MB cache, 1.80 GHz,TDP power consumption:17w)

4.Intel Core i5-3337U(Dual core, 3MB cache, 1.80 GHz,TDP power consumption:17w)

5.Core i7-3537U(Dual core, 4MB cache, 2.00 GHz,TDP power consumption:17w)

Parameters of LCD Touch screen:

Touch screen parameters
Touch technology: capacitive technology (ten points)
Effective touch recognition: >1.5mm
Communication method: Full-speed USB 2.0, 3.0
Theoretical clicks: more than 50 million times
Touch principle: current sensing
Surface hardness: Physically toughened, Mohs grade 7 explosion-proof glass

Brightness:250-350cd/m2
Contrast Ratio:1000:1
Viewing Angle:Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time:30 (Typ.)(Tr+Td) (ms)
Frame Rate:60Hz
Color system:PAL/ NTSC
Interface:1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system:+ 12V DC power input
Power adapter:input:100-250VAC,50 / 60Hz
output:60W Adapter(12V 5A)
Working temperature:-20°C-60°C
Relative humidity:0%-90%relative humidity, no condensatio
Plug:AU,EU,USA,UK plug available
Menu Languages:English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance:75*75mm

Delivery Time
Sample:1-5 working days.
10-100pcs:2-7 working days.
More than 100pcs :5-15 working days

&&& SPECIAL REMINDER &&&

LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).If you have this demand,please contact us,we will provide you with timely and thoughtful service!
