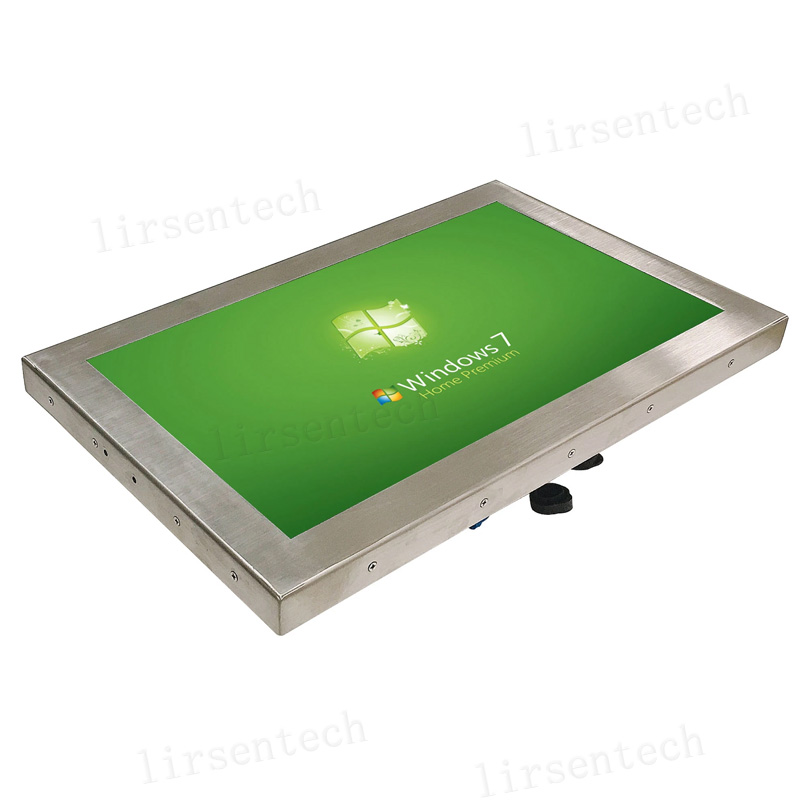

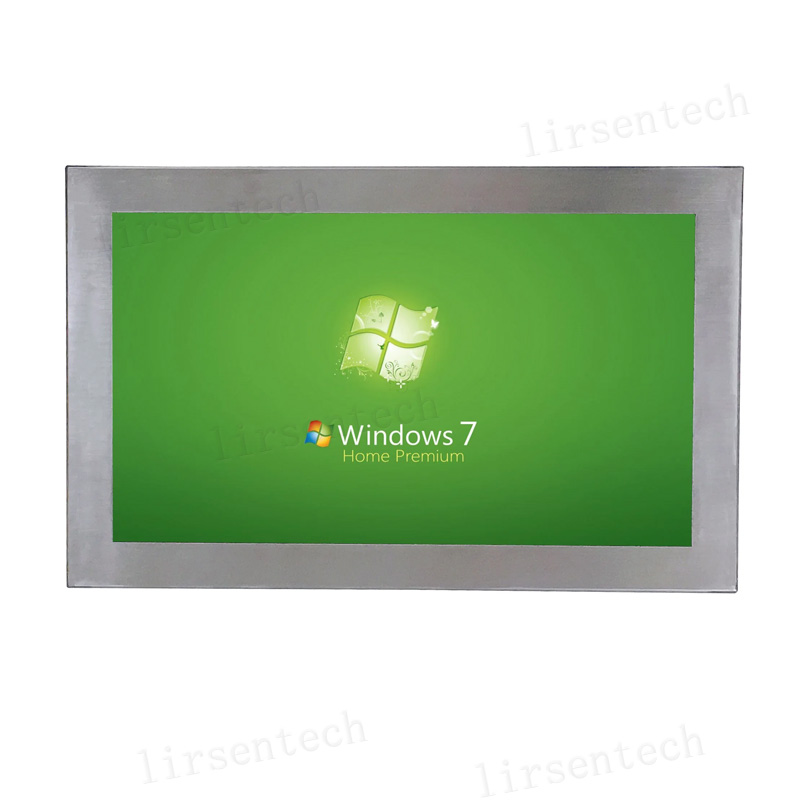

17.3 Inch Stainless Steel Explosion-Proof IP67 Dustproof and Waterproof Outdoor High Brightness 1000 Nit Industrial LCD Display Monitor
Product features:
17.3 inch 16:9 widescreen, 1920*1080 high-definition resolution, 350cd/m2 brightness (optional outdoor sunlight 1000cd/m2 high brightness), A+ perfect wide temperature industrial-grade LCD display;
Support power-on boot, all-weather uninterrupted operation, backlight life of up to 50,000 hours;
The whole machine is designed in accordance with the NEMA4/IP67 waterproof and dustproof rating, and the interface sockets are all CNLINKO brand aviation plugs; the shell is made of SUS304 material, which is more durable, corrosion-resistant and resistant to shock and vibration;
Adopt Taiwan EETI solution + industrial-grade resistive touch screen, with good stability, high accuracy and not afraid of dust, water vapor, oil, etc., adapt to various harsh environments (optional non-touch/capacitive touch);
DC 12V power supply to meet industrial field applications (DC 24V/DC 9-36V wide voltage is optional);
The panel (optional back shell) has OSD film buttons to help users adjust the LCD screen to the best use state as an option;
Support various installation methods, wall-mounted installation or desktop installation;
Operating system: support Windows system, Linux system, Android system, etc.
Technical datasheet
| Structural parameters | Special performance | Rugged and durable, resistant to corrosion and wear, salt spray, shock and vibration |
| Material color | The whole machine is made of SUS304, stainless steel color (black can be sprayed) | |
| Weight | Net weight: 5.8KG; gross weight: 9.8KG (including bracket weight) | |
| Design Features | The whole machine is IP67 dustproof and waterproof, power on, SUS304 metal shell | |
| Menu button | The panel has OSD film buttons, which can adjust the LCD screen to the best use state | |
| Display parameters | Size | 17.3 inch 16:9 LCD display |
| Resolution | 1920*1080 | |
| Brightness | 350cd/m2 (optional 1000cd/m2 visible brightness under sunlight) | |
| Contrast/Viewing Angle | Contrast ratio; 600:1 (Typ.); viewing angle; 80/80/60/80 (Typ.) (CR≥10) (left/right/up/down) | |
| Touch parameter | Touch type | EETI solution + industrial resistive touch screen (optional full-fit capacitive touch screen) |
| Material hardness | ITO glass; hardness>=3H | |
| Click life | >=5 million times | |
| Touch strength | Â <=45g~250g | |
| Interface parameters (Aviation plug) |
Display interface | VGA * 1, HDMI*1 (DVI, BNC optional) |

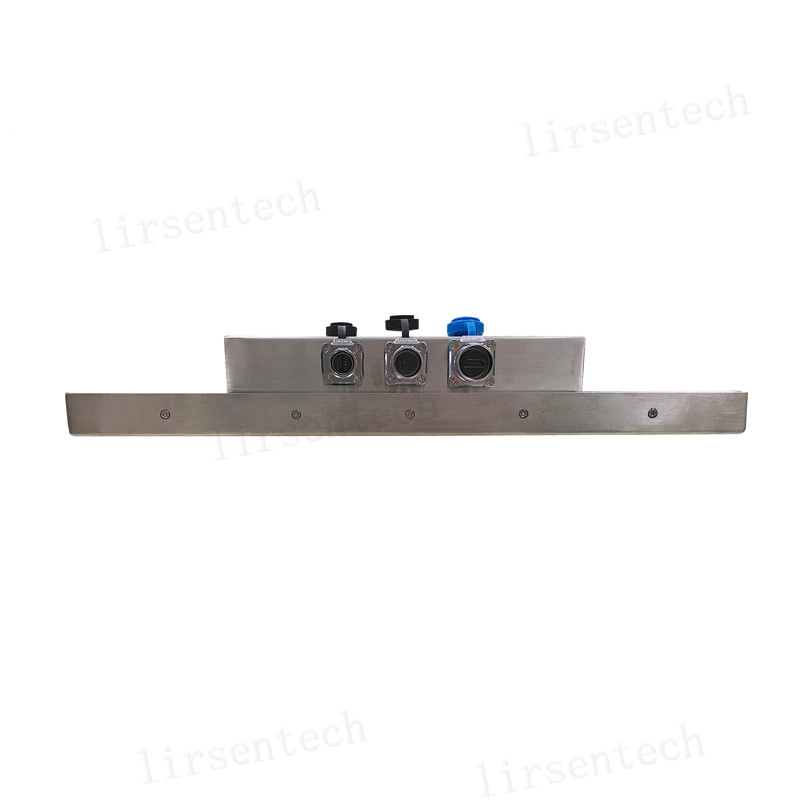

| Other interfaces | DC IN fastened power terminal (aviation plug), USB touch interface (aviation plug) | |
| Environmental parameters | Operating temperature | -20ºC~70ºC |
| storage temperature | -20ºC~70ºC | |
| Relative humidity | 10~90%, no condensation | |
| Dimensions | physical dimension | 446.0*278.2*68mm |

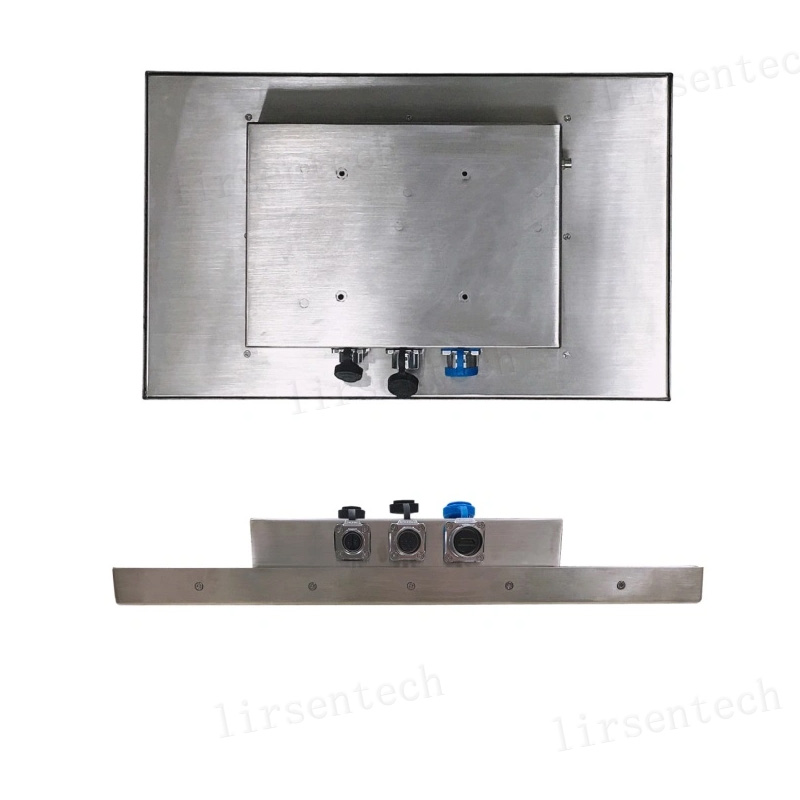

| Installation size | 100*100mm (VESA bracket wall-mounted installation) | |
| Power support | DC power supply | DC 12V power input (DC 24V/DC 9-36V) |

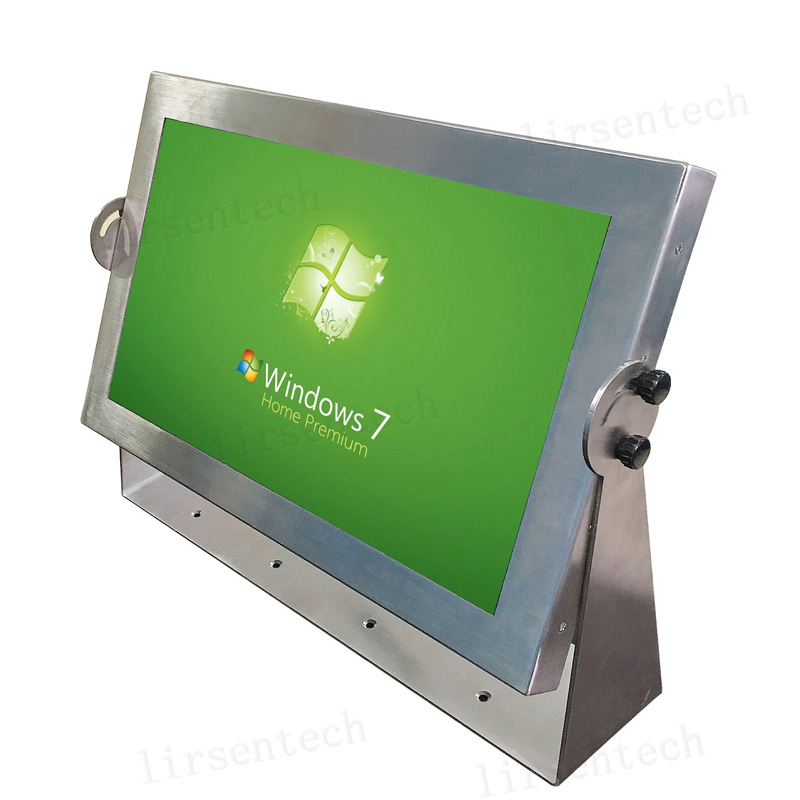

| Installation method | VESA bracket/cantilever installation (customized bracket) | |
| Shipping accessories | Standard | 12V waterproof power supply + touch cable + touch drive CD + touch pen + VGA cable |
| Warranty | 12 months (longer warranty time optional) warranty | |
| Outer packaging size / gross weight | 55.5*46*21.5cm/ 10.1kg | |
Design drawings:
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller’s permit.
FAQ:
Q: whether your industrial panel pc support the OEM / ODM?
A: Â Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: We support customzied services.
Industrial pc including: size, CPU, RAM, hard disk, touch type, 3G/4G/ WIFI network function, structure material, color, resolution, ip67-65 waterproof grade, high brightness, interfaces, OS, install methods, etc.
Industrial monitor including: size, touch type, structure material, color, resolution, ip67-65 waterproof grade, high brightness, interfaces, install methods, etc.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
