19 Inch 1280*1024 IP67 Stainless Steel Industrial Monitor with BNC Interface 350 Nits Brightness
19 inch 1280*1024 IP67 stainless steel industrial monitor with BNC interface 350 nits brightness
Introduction:
19-inch 1280*1024 high resolution, 350cd/m2 brightness visible in sunlight, A+ perfect industrial-grade LCD display;
It supports power-on and uninterrupted operation around the clock, and the backlight life can reach 50,000 times;
The whole machine is designed in accordance with the NEMA4/IP67 waterproof and dustproof rating, and the interface sockets are all CNLINKO brand aviation plugs; the shell is made of SUS304 material, which is more durable, corrosion-resistant and resistant to shock and vibration;
Adopt Taiwan EETI solution + industrial-grade resistive touch screen, with good stability, high accuracy, and not afraid of dust, water vapor, oil, etc., adapt to various harsh environments (optional EETI solution capacitive touch screen, support ten-point touch);
A variety of video interfaces for customers to choose from, BNC, VGA, HDMI, DVI, etc.
DC 12V power supply, to meet industrial field applications, with IP67 waterproof power supply (DC24V/DC9-36V power supply is optional);
The panel (optional rear case) has OSD operation buttons to help users adjust the LCD screen to the best use condition as an option;
Support various installation methods, wall-mounted installation or desktop installation;
Operating system: compatible with Windows, Linux, Android and other systems.
Technical datasheet:
| Structural parameters | Special performance | Power on, anti-corrosion and abrasion, sturdy and durable, anti-shock and vibration, IP67 dustproof and waterproof |
| Structure material | SUS304 material | |
| Case color | Stainless steel natural color (optional spray black) | |
| Menu button | The panel has OSD film buttons, which can adjust the LCD screen to the best use state | |
| Display parameters | Size | 19 inch 5:4 display ratio |
| Resolution | 1280*1024 | |
| Brightness | 350cd/m2 (optional 1000cd/m2 visible brightness under sunlight) | |
| Contrast | 1000:1(Typ.) | |
| Viewing angle | 85/85/80/80(Typ.)(CR≥10)(left/right/up/down) | |
| Touch parameter | Touch type | Taiwan EETI control solution + resistive touch screen (capacitive touch screen optional) |
| Hardness | >=3H | |
| Click life | >=5 million times | |
| Touch strength | <=45g~250g | |
| Material quality | ITO glass | |
| Interface parameters (Aviation plug) |
Display interface | BNC, VGA (optional HDMI or DVI) |
| Other interfaces | DC IN fastened power terminal (aviation plug), USB touch interface (aviation plug) | |
| Environmental parameters | Operating temperature | -10ºC~60ºC |
| storage temperature | -20ºC~70ºC | |
| Relative humidity | 10~90%, no condensation | |
| Dimensions | physical dimension | 453.4*381.4*61mm |
| Installation size | 100*100mm/100*200mm (VESA bracket installation) | |
| Power support | DC power supply | DC 12V power input |
| Support VESA standard bracket installation | ||
| Installation method | Standard | 12V waterproof power supply + corresponding interface IP67 aviation plug accessories + touch drive CD + touch pen |
| Shipping accessories | 12 months (longer warranty time optional) warranty | |

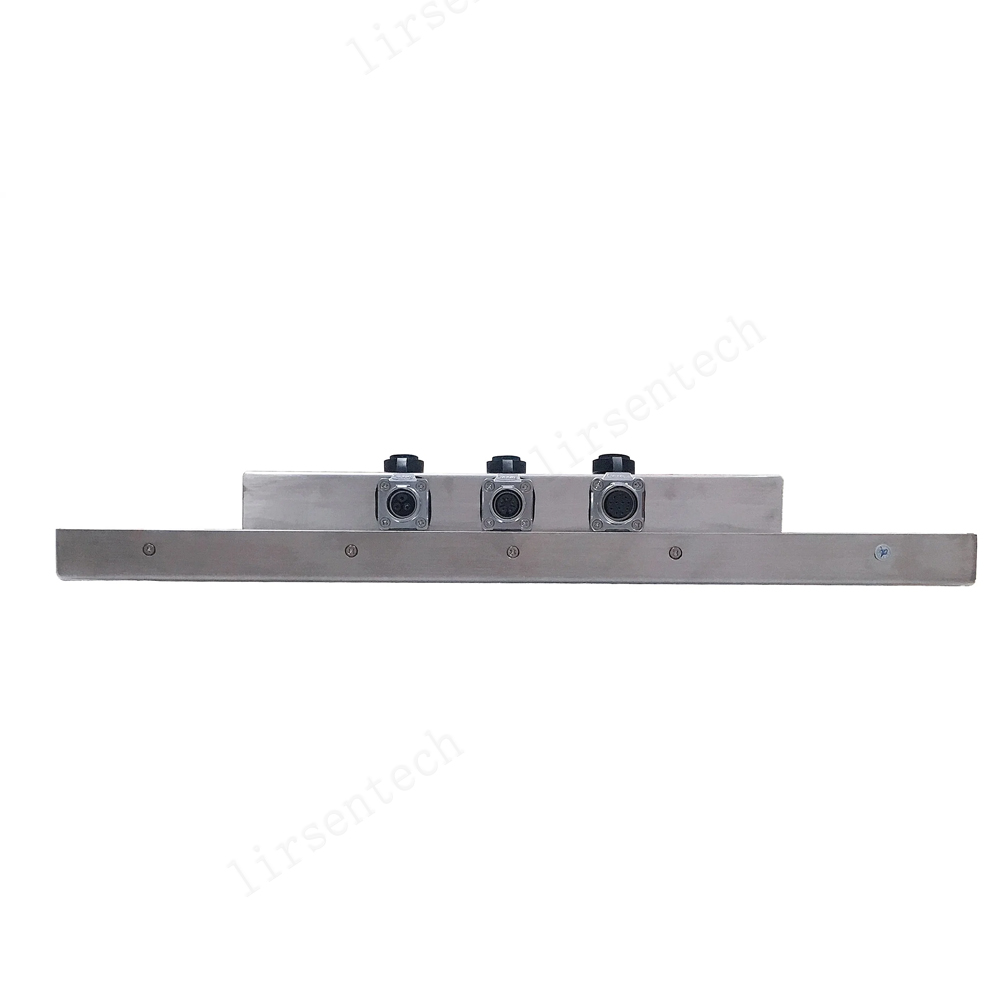

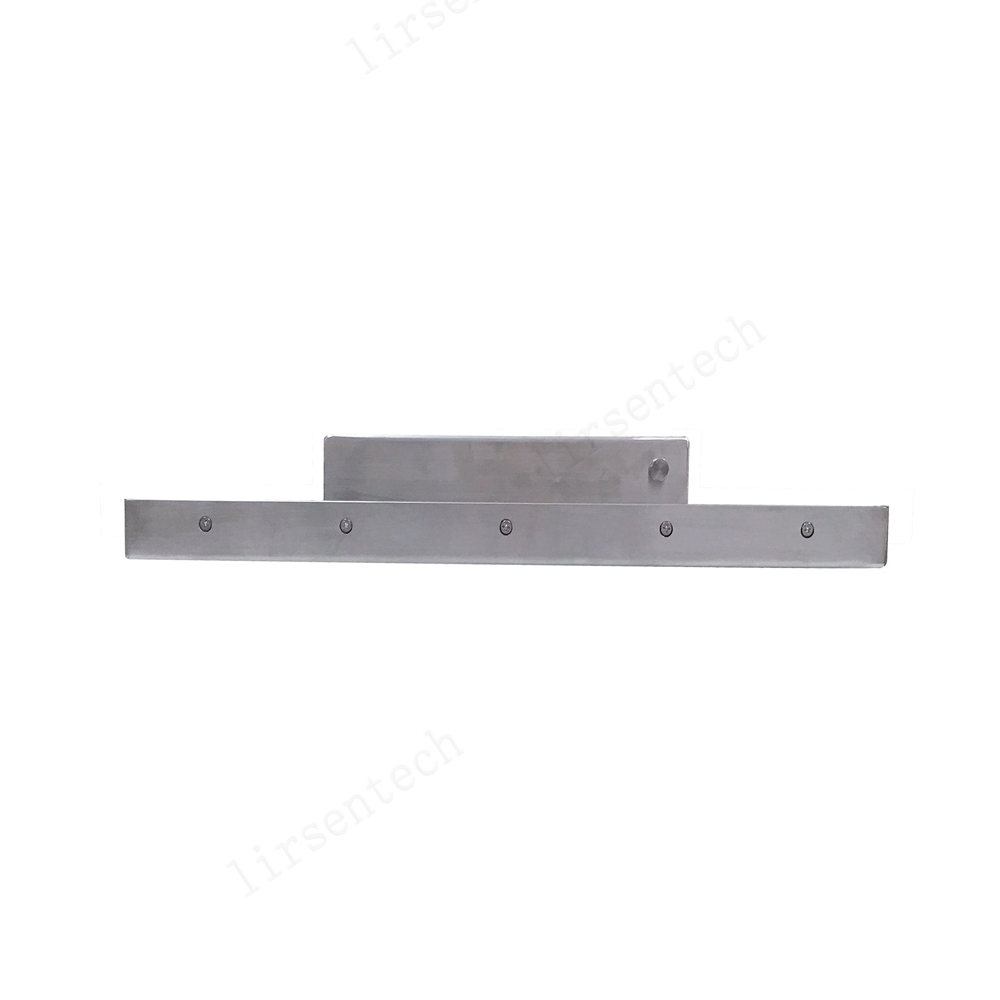

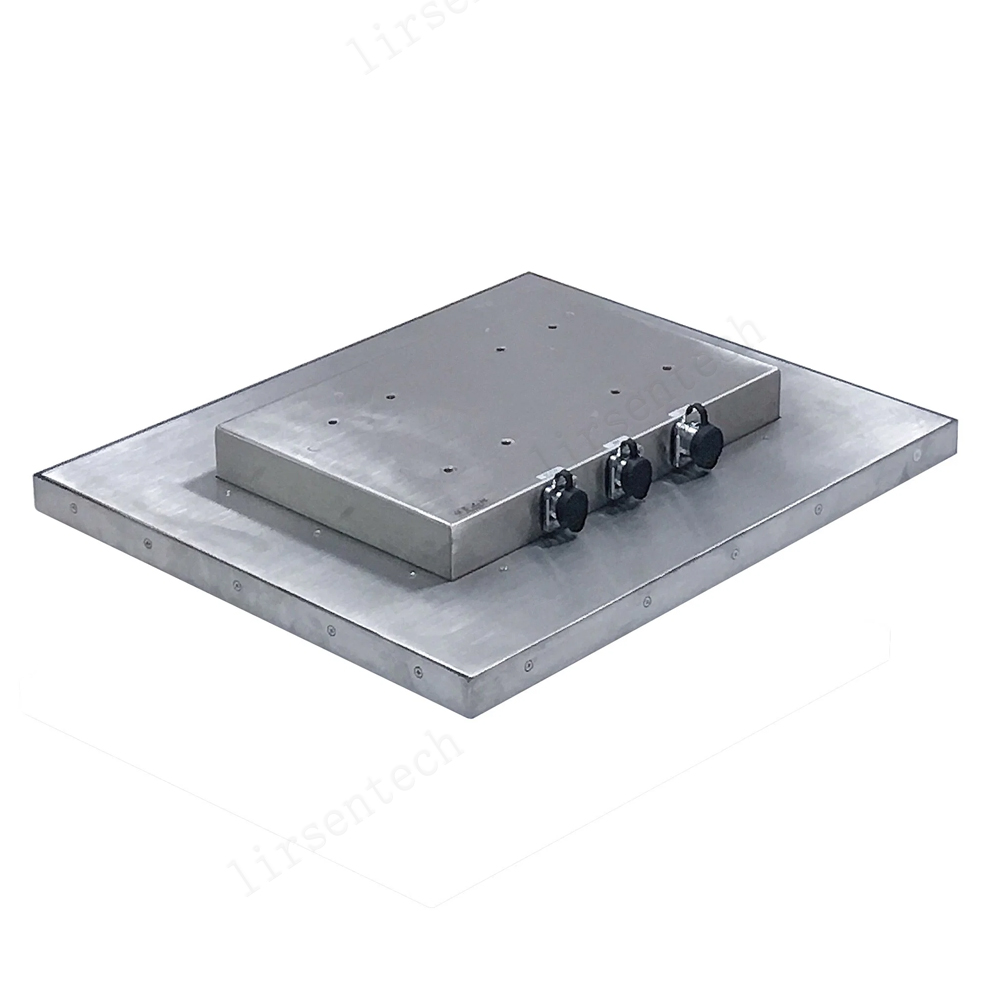

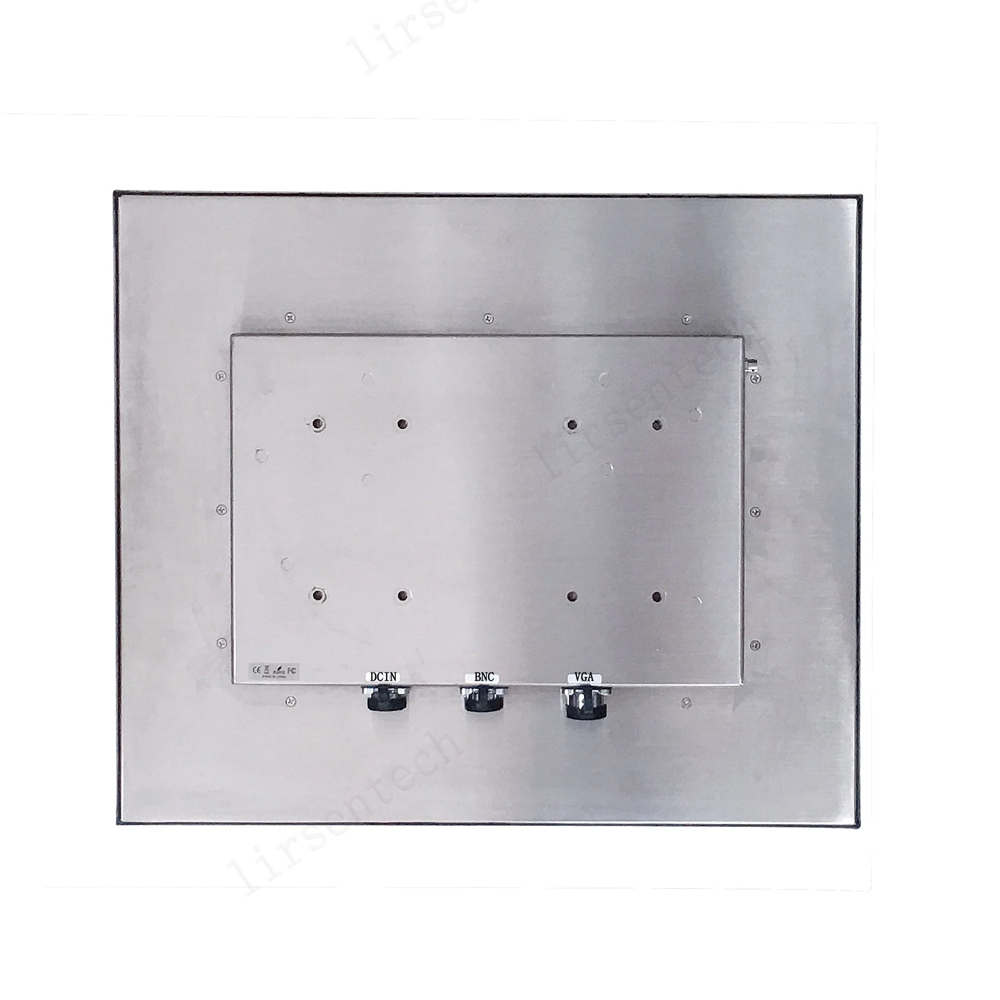

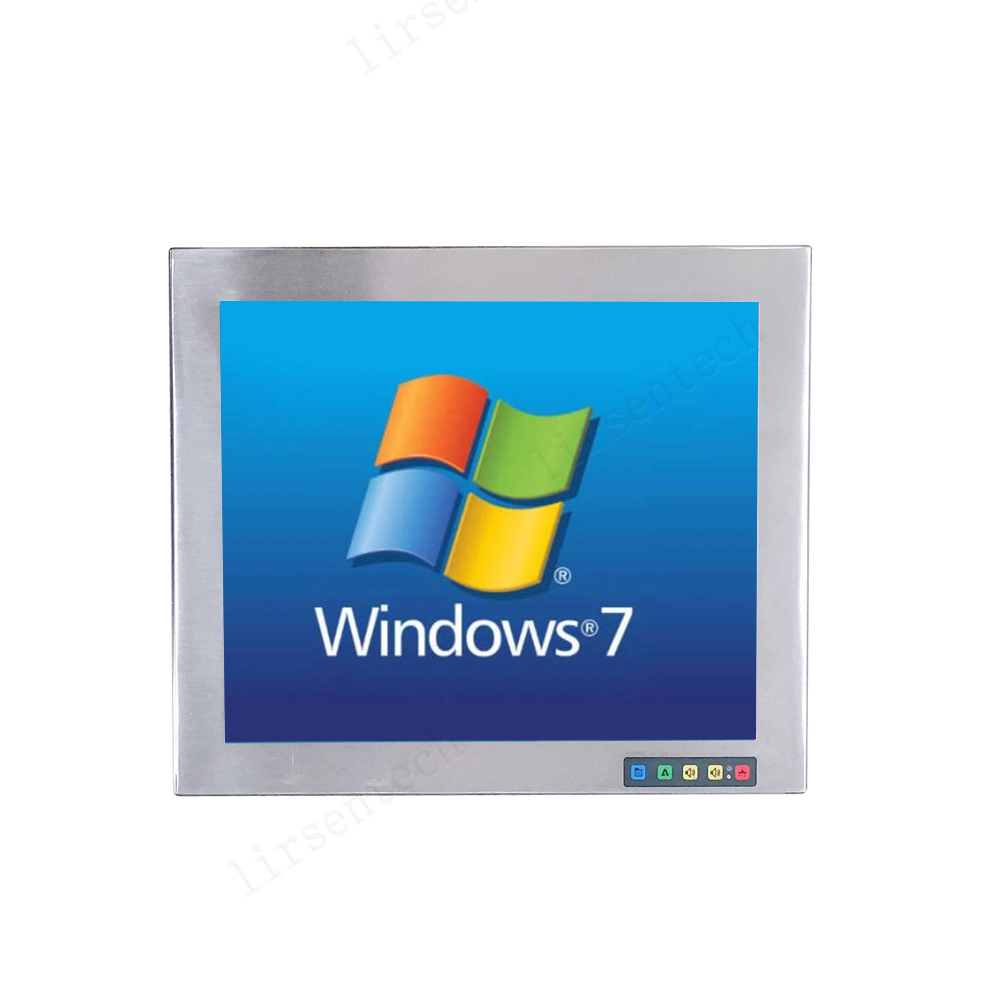

Product picture:
