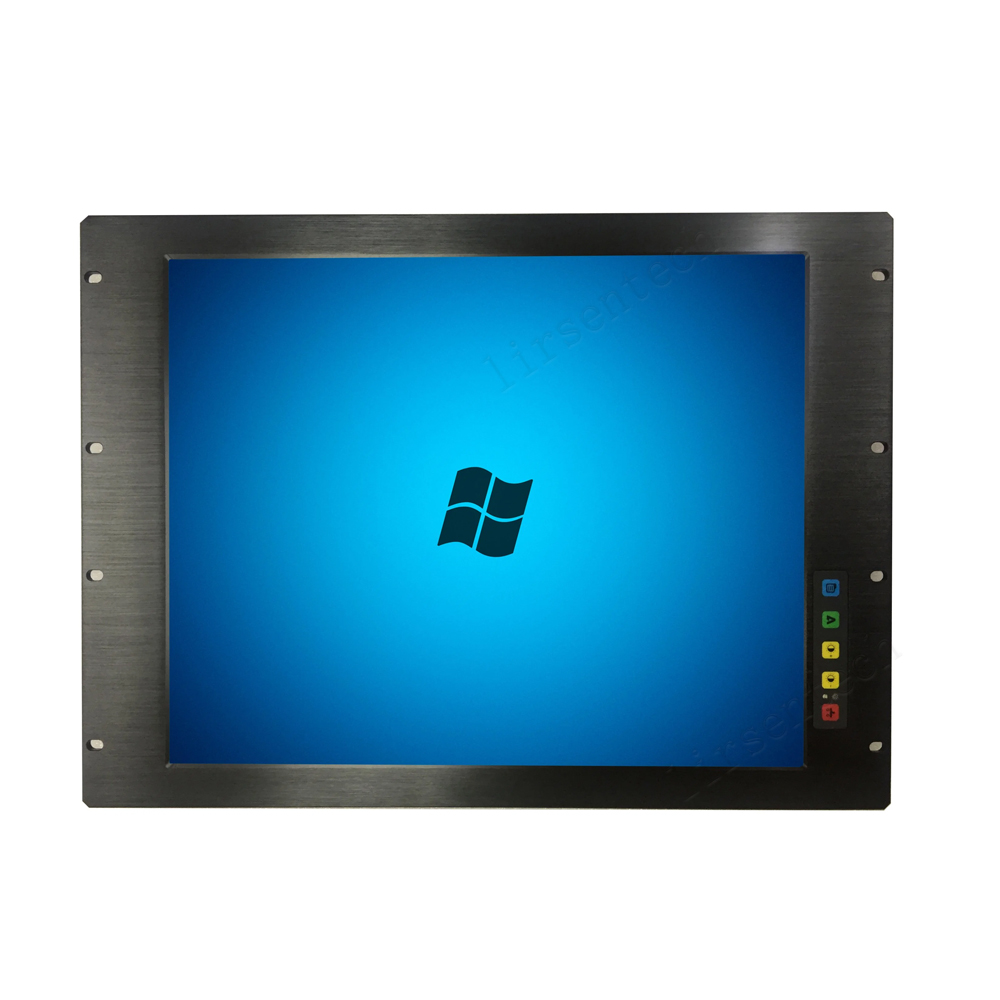

19-Inch 1280X1024 5: 4 Square Screen Standard Rack-Mounted Industrial LCD Touch Screen Monitor
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Sunlight Readable Monitor
Industrial Monitor
Touch Screen Monitor12.1 inch 16:10, 1280*800 high resolution, A standard perfect LCD display;Supports power-on, all-weather uninterrupted operation, and the backlight can reach more than 50,000 life;
Industrial Monitor
Touch Screen Monitor12.1 inch 16:10, 1280*800 high resolution, A standard perfect LCD display;Supports power-on, all-weather uninterrupted operation, and the backlight can reach more than 50,000 life;
Adopt industrial five-wire resistive touch screen, with good touch stability, high accuracy, not afraid of dust, moisture, oil, etc., and adapt to various harsh environments;
The whole machine is composed of aluminum alloy brushed panel and high-strength steel body, which has excellent characteristics such as strong shock resistance, pressure resistance, durability, etc., and is more suitable for use in harsh environments (the panel is optional or the whole machine is dustproof and waterproof);
There are menu operation buttons on the back of the case, which is more convenient for users to adjust the use effect to the best state, and supports multi-language switching;
DC 12V power input (optional 6-30V wide voltage), using phonix fastening power socket, more convenient for industrial field applications. Equipped with a world-renowned brand “Huntkey” power adapter;
Standard VGA display interface (optional HDMI interface, DVI interface);
Operating system: compatible with mainstream operating systems such as Windows and Linux;
Support multiple installation methods, embedded/wall-mounted/desktop.
Technical datasheet:
| Structural parameters | Design Features | Power on, corrosion-resistant and wear-resistant, beautiful appearance |
| Structure material | Oxidized drawing aluminum alloy panel + high-strength steel alloy sheet metal box | |
| Case color | Black (silver white is optional) | |
| Overall size | 333*231*40mm | |
| Installation size | 311*213mm (embedded); 75x75mm (VESA wall-mounted/standing) | |
| Installation method | Support embedded, wall-mounted and standing | |
| Power support | Fastening power terminal, DC 12V power input (6-30V wide voltage optional) | |
| Display parameters | Size | 12.1 inch 16:10 |
| Resolution | 1280*800 | |
| Brightness | 250cd/m2Â (Optional 1000/ 1500 Nits sunlight readable) | |
| Contrast | 500:1(Typ.) | |
| Viewing angle | 89/89/89/80(Typ.)(CR≥10)(Left/Right/Up/Down) | |
| Touch parameter | Touch type | Resistive touch screen (Optional Capacitive touch screen) |
| Material and hardness | Material: ITO glass; surface hardness >=3H | |
| Click life | >=50 million times | |
| Touch strength | 20g~100g | |
| Other parameters | Transmittance >=75%; corresponding time: <=10ms | |
| Interface parameters | Display interface | VGA (optional HDMI, DVI) |
| Other interfaces | DC IN fastened power terminal (Phoenix terminal), USBB/RS232 touch interface (optional) | |
| Environmental parameters | Operating temperature | 0ºC~60ºC |
| Storage temperature | -20ºC~65ºC | |
| Relative humidity | 10~90%, no condensation | |
| Vibration | 50~500Hz,1.5G,0.15mm peak-to-peak value | |
| Shock | 10G(11ms) | |
| Shipping accessories | Standard | Power adapter + VGA cable + touch cable + touch screen driver CD + touch pen + embedded installation clip |
| Warranty | 12 months (longer warranty time optional) warranty |
Design drawings:
