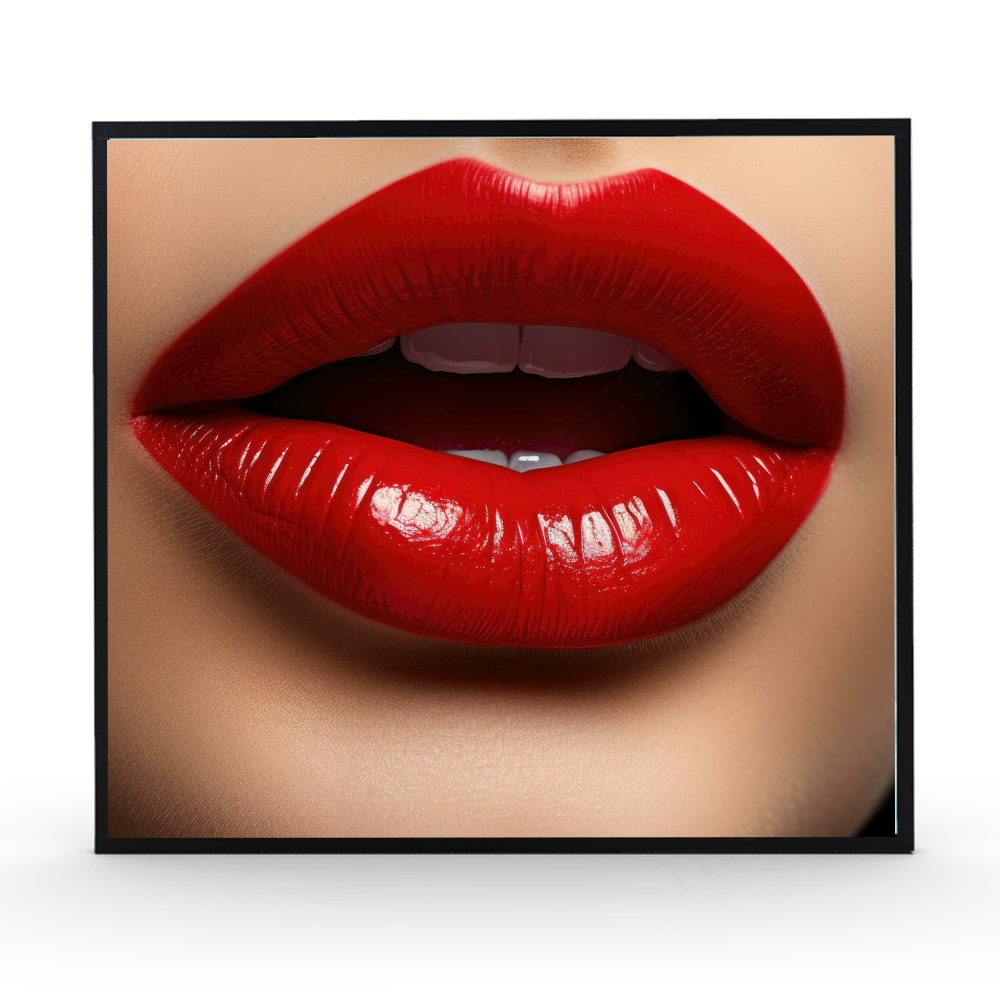

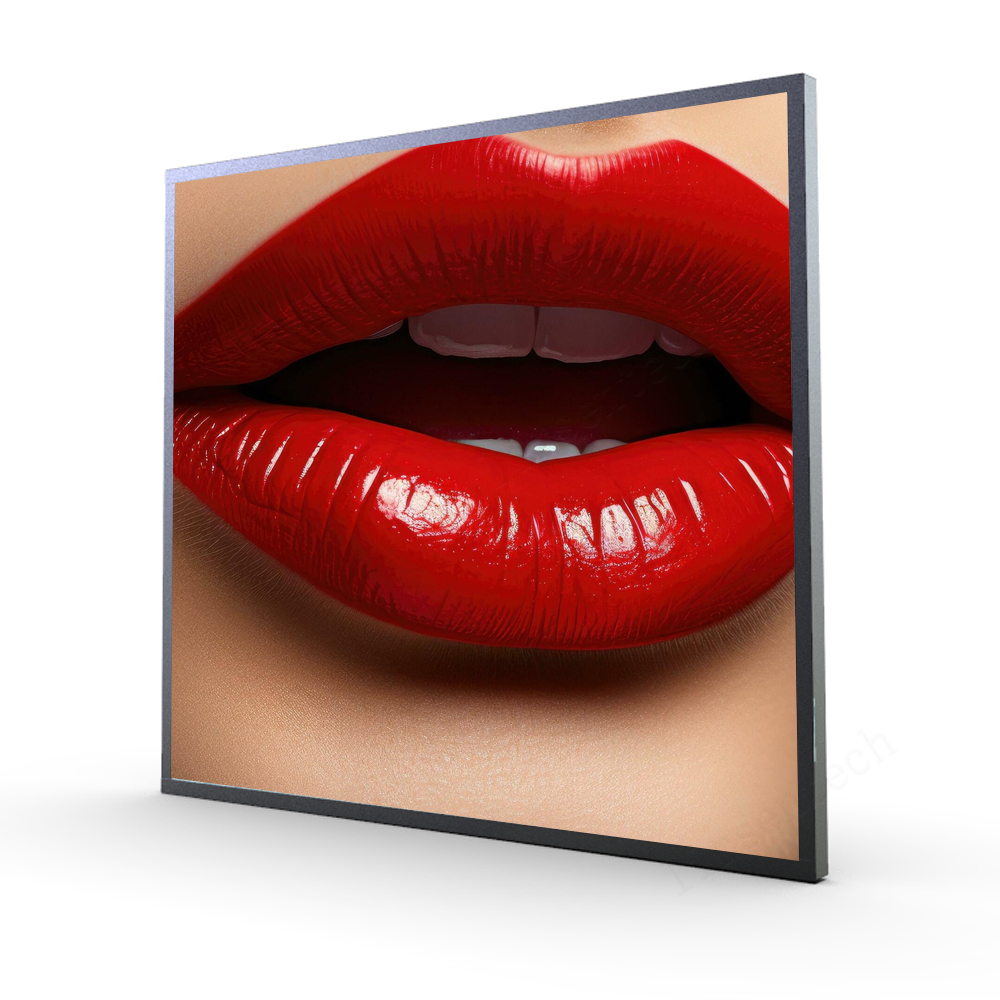

39.4 Inch square LCD panel Digital Art Screen with Android 7.1 for advertising for counter shop

OEM/ODM customized

meet different needs
Timed play

Release information at a fixed time
Remote operation

One-click publishing via the web
IPS hard screen

178° wide viewing angle
timing boot

timing boot regularly shutdown

SKU: SQ-394 Category: Square LCD Screen Tag: Square LCD Screen

PARAMETERS

LCD screen specifications	Size	39.4″
	Backlight	a-Si TFT-LCD
	Active area	594mm(H)x594mm (V)
	Ratio	>3:1
	Resolution	943*943
	Display color	16.7M
	Dot pitch	0.315×0.315 mm (H×V)
	Brightness	500cd/m²
	Viewing angle	178°
	Response time	8ms
	Refresh frequency	60HZ
	Language	Chinese/English
System	CPU	ARM Cortex-A17
	RAM	2G DDR3
	Internal memory	8G EMMC
	WIFI	2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK
	Bluetooth	N/A
	Network	LANX1
	Interface	TF Card×1/USB×2 DCIN×1 OTGX1 MICX1
	Operation system	Android 7.1
Power	Power supply	～AC 100-240V 50/60Hz
	Power consumption	38W
	Standby power consumption	≤0.1W（Board only）
Other	Storage temperature	-20–60°
	Speaker	1×1.3W
	Dimension	647×647×24.5mm
	Weight	10.4KG
Accessories	Remote control	N/A
Accessories	Power adapter	AC 12V/5A

Product key features:

◪Different designed enclosures can be customized exactly according to client requirements.
◪Size, configuration, and border color can be customized;
◪Right angle series and rounded series optional;
◪Adopting screen-by-picture technology;
◪Mounting direction, horizontal and vertical optional;
◪Publish multiple ads or videos at the same time;
◪Built-in high transparent tempered glass (2-6 mm ), perfectly integrated into all kinds of applications, as protection layer to prevent lcd/led panel being broken or distorted;
◪Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places;

CPU	i3, i5, i7
Memory	2+32, 4+64
OS	Andoid, Windows
