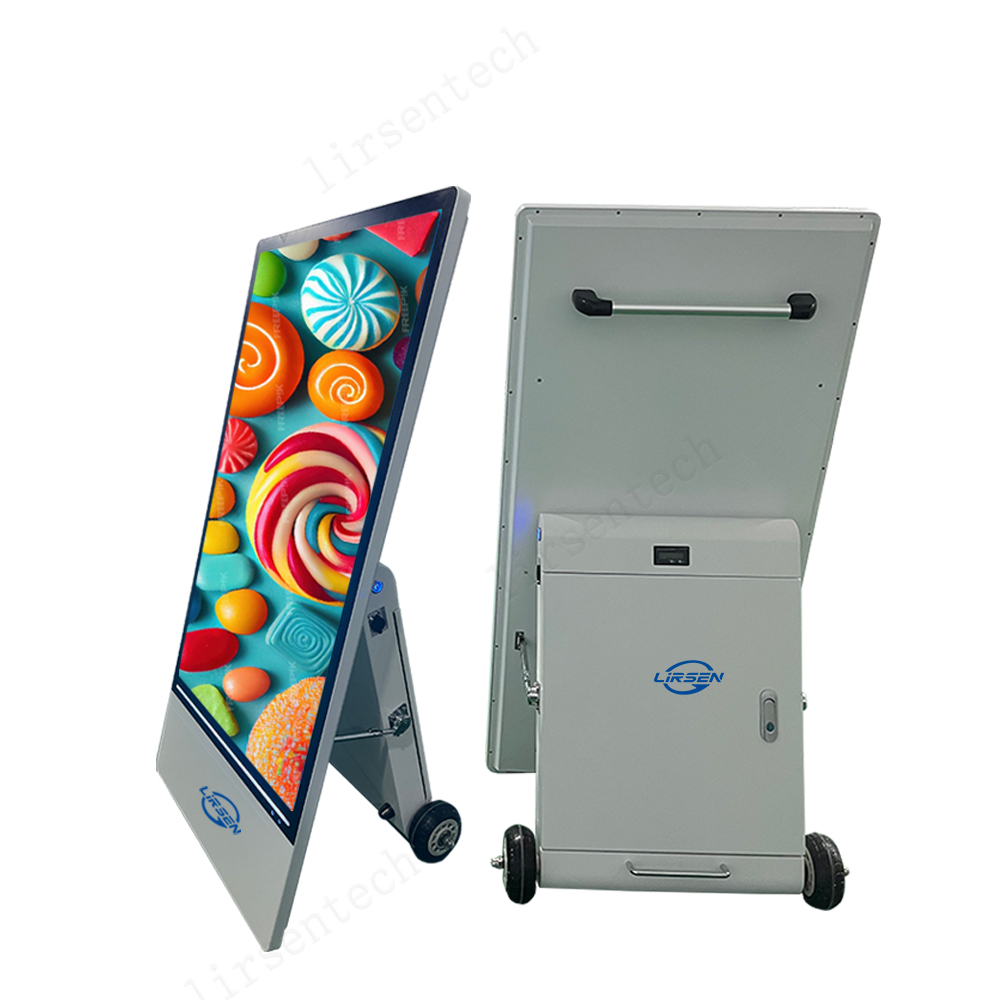

outshell structure | ||
1.The shell material is fully galvanized steel plate making cabinet, the outer surface is imported metal paint, anti-magnetic, anti-static, imported waterproof material, the whole machine adopts IP55 waterproof, outdoor all-weather waterproof and dustproof, anti-theft, explosion-proof design;
2.Strict electrical protection: leakage, overload, overvoltage protection, lightning protection device, overtemperature protection, etc.; 3.Sound: using dual channel, stereo surround power amplifier system, output power 8 euro 210W; 4.Working environment design standard + 110°~ -50°, cooling using stable and reliable air cooling structure heat dissipation and aluminum military grade heat dissipation substrate; 5.Steened glass: 6mm AR tempered laminated glass; 6.Each system of the whole machine adopts the modular design principle, sustainability, maintainability design; 7.Light sensing system is superior: environment brightness automatic adjustment control anti-glare, to meet the strong direct sunlight environment clear image display; |
||
Key Features | ||
1.Bright LED backlight LCD screen, the brightness reaches 1800 nits, and it is still clearly visible in the sunlight environment;
2.Unique liquid crystal substrate width and temperature treatment can reach-50℃ -110 degrees Celsius, low temperature environment fast start and clear image display; 3.Real bright and bright colors display, up to 2160 x3840 resolution; 4.Outdoor rainproof type heat resistance metal shell, as well as the waterproof and dustproof shell structure in the outdoor storm environment; 5.Built-in stand-alone (network) player board, industrial control computer (optional), interactive multi-touch (optional); |
LCD Panel | |
Panel type | 43”LED Panel |
Displays the size | 943×531mm(W*H) |
Show the proportion | 16:09 |
Backlit type | Patent LED backlight modular component + constant |
resolution ratio | 1080* 1920 |
Show color | 16.7M |
luminance | 1800cd/m2Meet the strong direct sunlight environment |
contrast ratio | 3500:01:00 |
Visual Angle | 178°(H) / 178°(V) |
response time | 5ms |
Color system | PAL/NTSC/SECAM |
life length | For 60,000 hours |
PC Part | |
CPU | The Cortex-A7 architecture, with a main frequency of 1.2G |
internal storage | DDR3 1G |
Built-in memory | Up to 32GB of TF card expansion support |
Decoding resolution | The maximum support is 1080P |
operating system | Android 7. 1. 1 |
Network support | 3G / 4G wide area network, Ethernet, support for WiFi, |
Video play | Support for AVI (H.264 、DIVX 、DIVX 、XVID ), |
picture format | Support for BMP, JPE(G, PNG, and GIF |
The USB2.0 interface | 2 USB HOST standard interfaces and 2 USB extension |
system upgrade | Supports USB upgrade, SD card upgrade, remote |

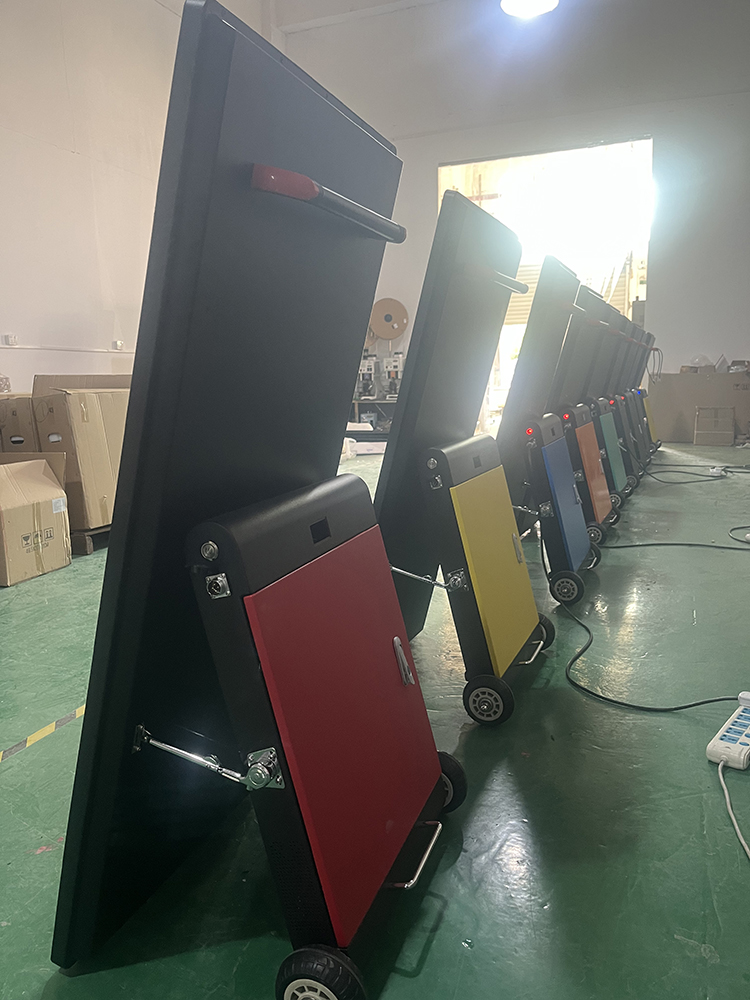

Battery | |
Battery technology | Blade battery, long use time, stable performance |
charging interval | Charge for 7 hours |
operate time | Work 14 hours |
battery capacity | 50000 mAh |
input voltage | 24V |
working environment | |
working temperature | -50℃~110℃ |
Storage temperature | -45℃~80℃ |
Working humidity | 0.10~90% |
Store humidity | 0.10~90% |
power consumption | |
power input | AC100V~240V |
Power power consumption | ≤100W |
Standby power consumption | ≤3W |
Others | |
Appearance color | Silver, gray, white, black, red |
Case material | Galvanized steel plate + outdoor special baking paint |
product certification | ISO9001,3C,FCC,UL |
net weight | 40Kg |
rough weight | 48Kg |
product size | 1236mm*148mm*588mm |
packing measurement | 1350mm*300mm*700mm |
