Rugged 19-Inch 16: 10 Widescreen 1440*900 High-Resolution Ultra-Thin Industrial Touch Display LCD Touch Screen Monitor
Product Description
Rugged 19-inch 16:10 widescreen 1440*900 high-resolution ultra-thin industrial touch display LCD touch screen monitor (IM-190W-HDMI-RT)

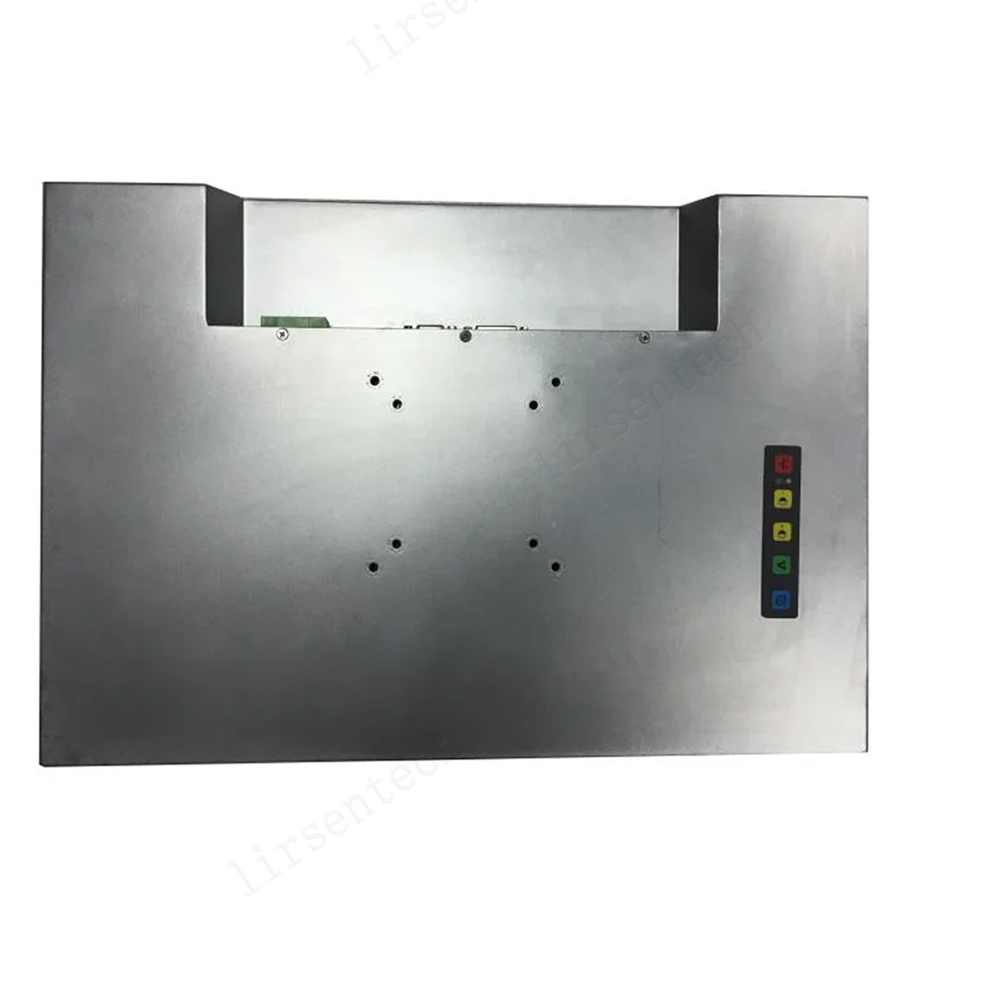

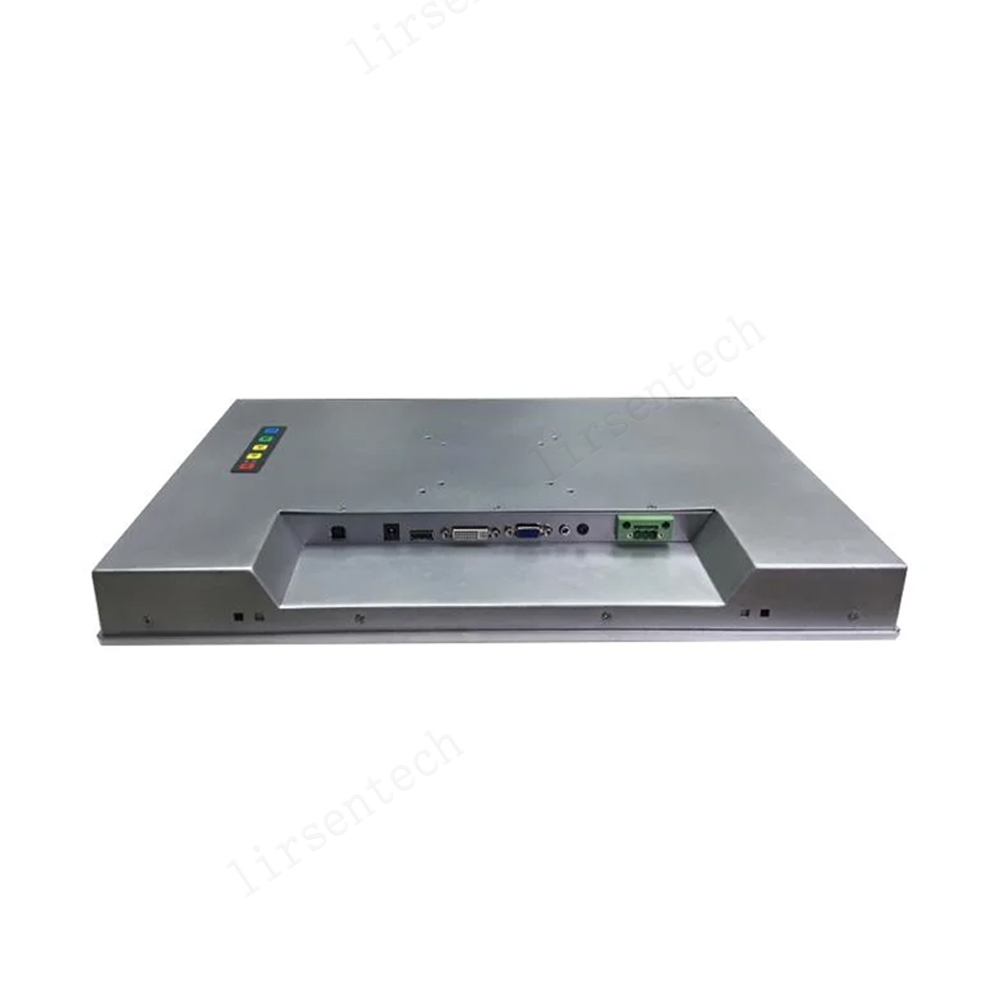

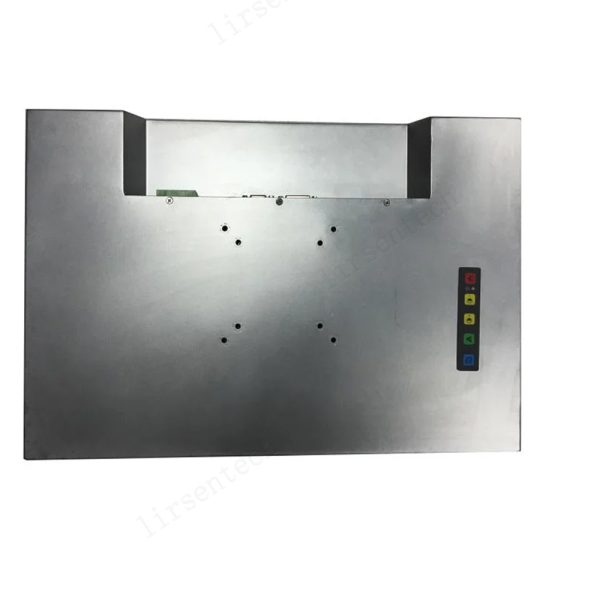

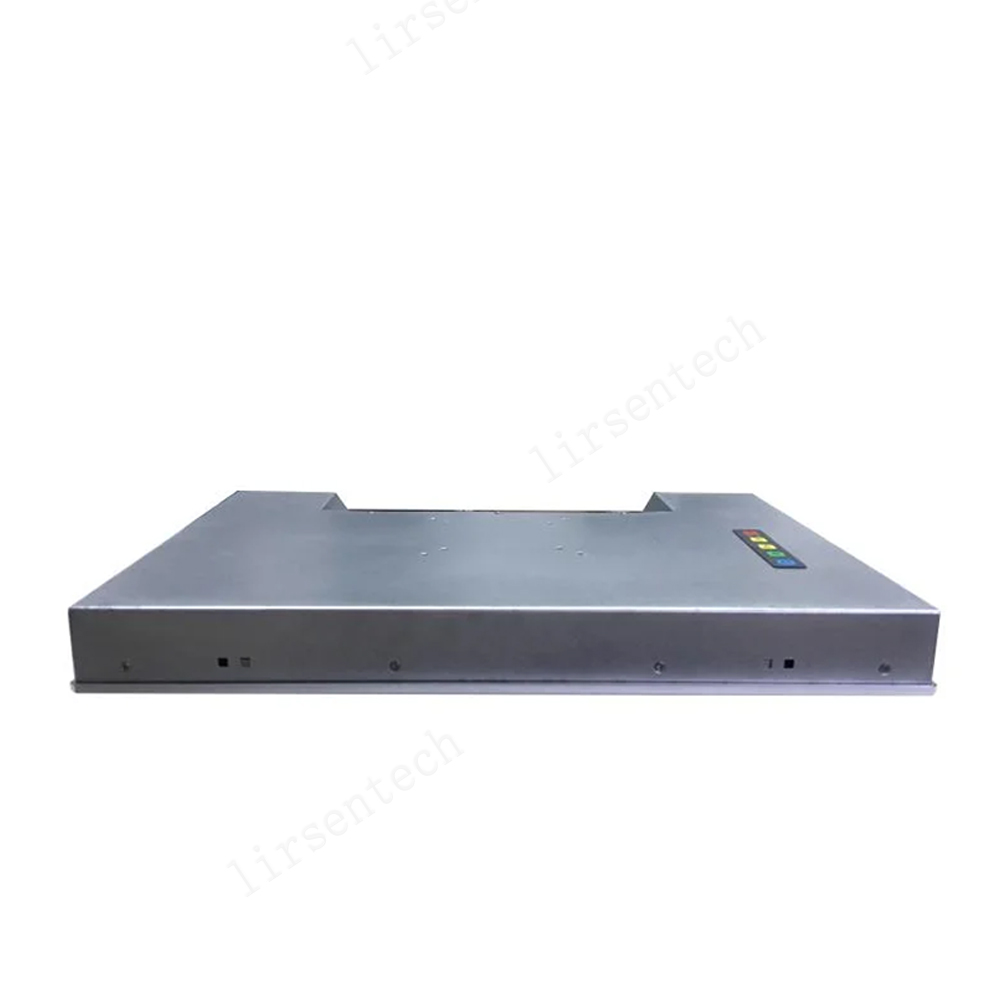

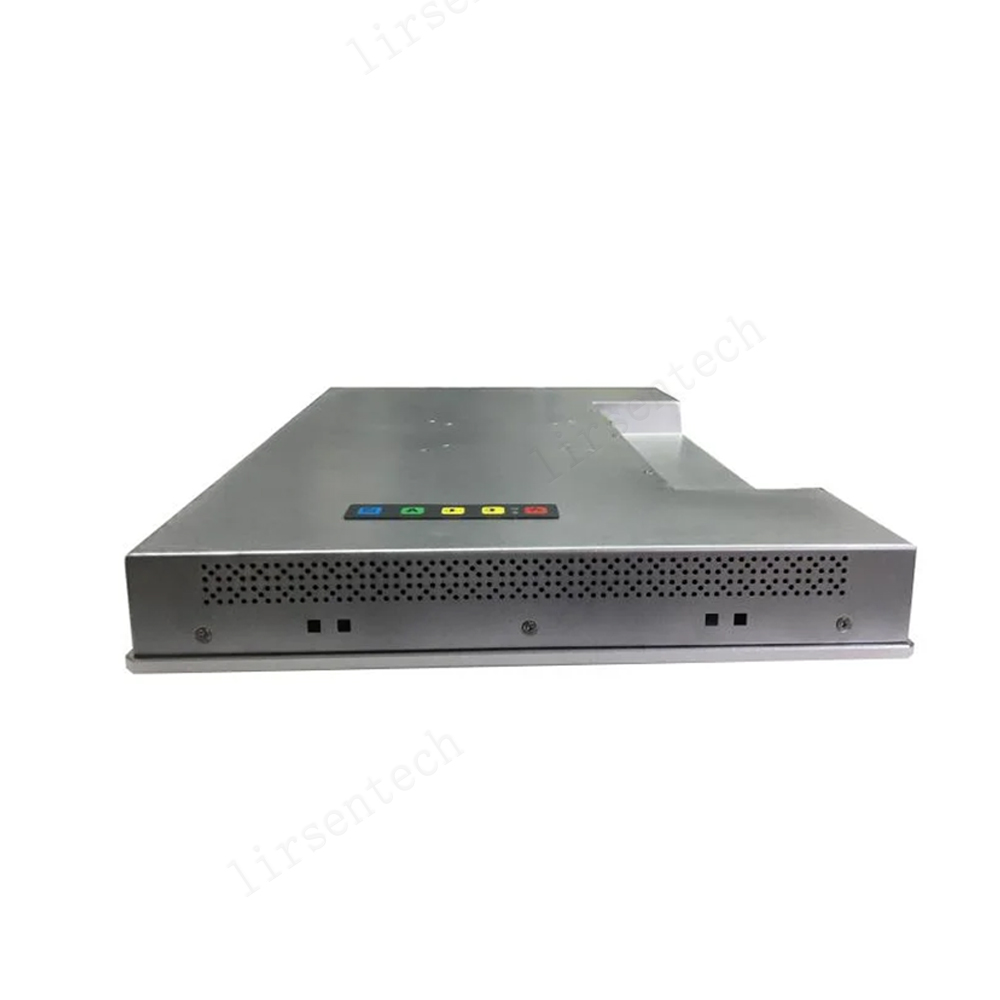

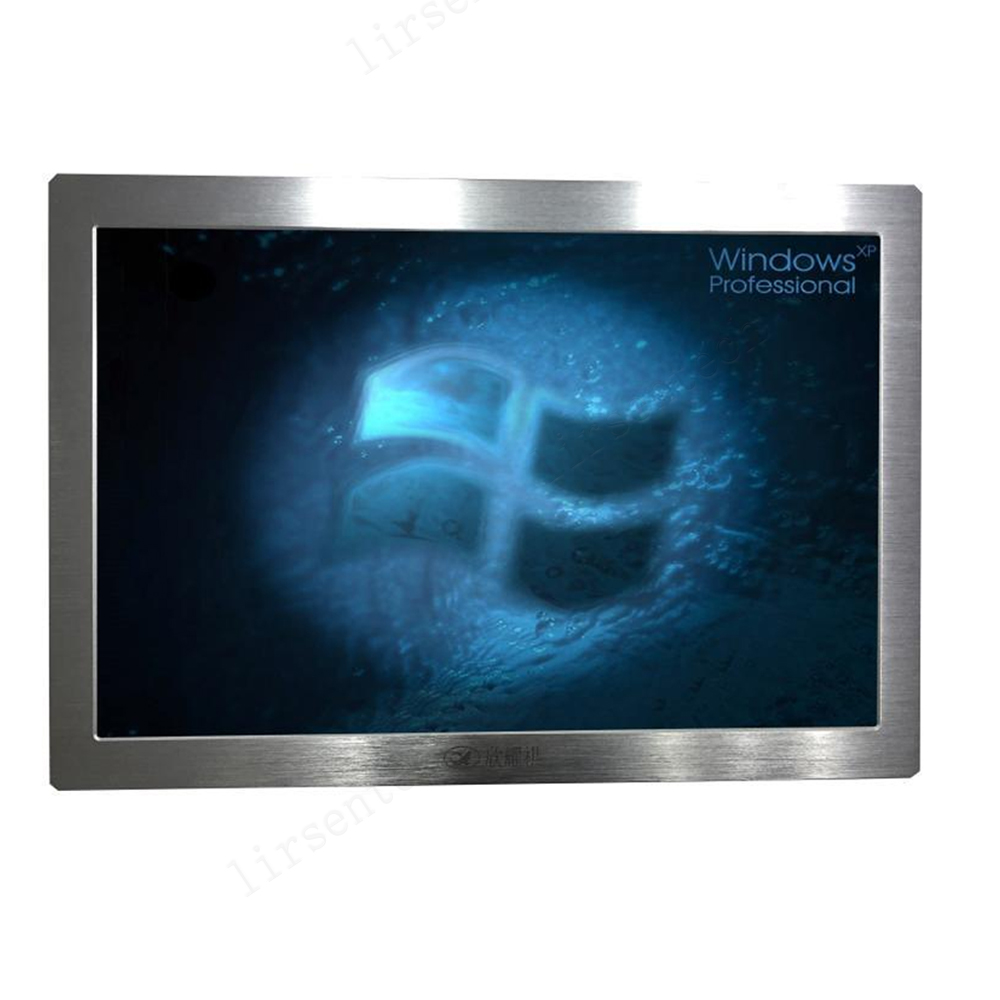

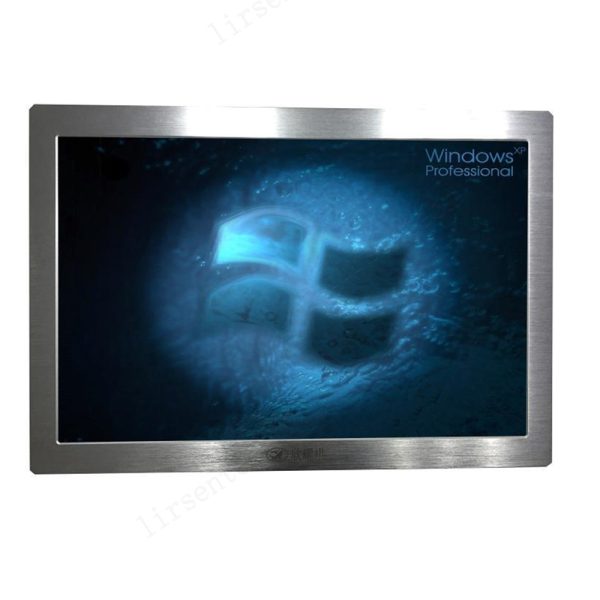

Product show:
Product features:
19-inch 16:10 widescreen, 1440*900 high-resolution LED, A+ perfect LCD display;
Adopt industrial-grade resistive touch screen, with good stability, high accuracy and not afraid of dust, water vapor, oil, etc., adapt to various harsh environments; (optional no touch);
Support power-on and uninterrupted operation around the clock;)
The material of the whole machine is composed of aluminum alloy brushed panel and high-strength steel alloy. It has excellent characteristics such as strong shock resistance, pressure resistance, durability, corrosion resistance, etc., and is more suitable for use in harsh environments (optional panel or IP65 dustproof waterproof);
Adopt phonix (Phoenix terminal) fastening type power supply, DC 12V (other wide voltage input is optional), to meet industrial field applications, with world-renowned brand “Huntkey” adapter;)
OSD film buttons on the back shell (optional panel with buttons), to help users adjust the LCD screen to the best use state as an option;
Multi-display input interface: VGA+HDMI+DVI;
Support multiple installation methods, embedded, wall-mounted or standing installation;
Operating system: compatible with mainstream operating systems such as Windows and Linux;
Technical datasheet:
| Structural parameters | Special performance | Rugged, shock-resistant, corrosion-resistant and wear-resistant (optional panel or complete machine up to IP65 dustproof and waterproof) |
| Structure material | Oxidized drawing aluminum alloy panel + high-strength sheet metal box | |
| Case color | Silver white (optional black/industrial gray) | |
| Design Features | Power-on boot, thin and beautiful | |
| Menu button | OSD film buttons on the back shell can adjust the LCD screen to the best use state | |
| Display parameters | Size | 19-inch 16:10 industrial display (19.5-inch 16:9 widescreen optional) |
| Resolution | 1440*900 (optional 1920×1080) | |
| Brightness | 250cd/m2 (optional other brightness) | |
| Contrast | 1000:1(Typ.) | |
| Viewing angle | 85/85/80/80(Typ.)(CR≥10)(left/right/up/down) | |
| Touch parameter | Touch type | Resistive touch screen (optional no touch) |
| Hardness | >=3H | |
| Click life | >=50 million times | |
| Touch strength | <=45g~250g | |
| Material quality | ITO glass | |
| Interface parameters | Display interface | VGA x 1, HDMI x 1, DVI x 1 |
| Other interfaces | DC IN fasten power terminal, USBB touch interface, audio interface | |
| Environmental parameters | Operating temperature | 0ºC~60ºC |
| storage temperature | -20ºC~70ºC | |
| Relative humidity | 10~90%, no condensation | |
| Dimensions | physical dimension | 464x317x46mm |
| Hole Size | 454x307mm (embedded); 75x75mm/100x100mm (VESA wall-mounted/standing) | |
| Power support | DC power supply | DC12V power input |
| Installation method | Embedded/wall-mounted/standing | |
| Shipping accessories | Standard | Adapter + power cord + USB touch cable + touch driver disk + touch pen + VGA cable + embedded mounting clip |
| Warranty | 12 months (longer warranty time optional) warranty | |
Drawings:
Application:
Our service:
1. We guarantee that all products have been checked and packaged in good condition before dispatch. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from own factory, there is no middle man, no high markup, so we can provide quality items for a very competitive price.
3. Whether you are not satisfied with our products and services or you have any other questions, Please contact us at first time. We will respond you at 24 hours.
Warranty conditions:
1.All products have 1 year warranty, no artificially damaged.
2.If there are some problems with the goods, the buyer needs to supply related documents (Photos, video etc) or damage to the original spare parts to old change new. Please contact the seller before you disassemble machines. please note, we will be not responsible for the goods you disassemble any goods without the seller’s permit.
FAQ:
Q: whether your industrial panel pc support the OEM / ODM?
A: Â Yes, our industrial panel PC support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your panel pc / Tablet pc apply?
A: Restruant, Advertisement, Gaming, Medical Equipment, kiosk, ATM, Industrial autamation, Supermarket chain stores, industrial control,detection device,instruments and meters,security monitoring, intelligent terminals embedded high-end application,etc .
Q: What is the main size for your panel pc and industrial monitor?
A: We support customzied services.
Industrial pc including: size, CPU, RAM, hard disk, touch type, 3G/4G/ WIFI network function, structure material, color, resolution, ip67-65 waterproof grade, high brightness, interfaces, OS, install methods, etc.
Industrial monitor including: size, touch type, structure material, color, resolution, ip67-65 waterproof grade, high brightness, interfaces, install methods, etc.
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs .
Q: What kind of inspection you can provide?
A: We has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all panel pc and monitor are in perfect condition before shipment.
Q: What is your guarantee period?
A: 1 Years Quality Quarantee.
